Fender Custom Shop Limited Edition Josefina Handwound Dual Mag II Stratocaster Pickups - Set

SKU 31FEN103
by Fender
Original price $ 0
Original price $ 599.99 - Original price $ 599.99
Original price
Current price $ 599.99
$ 599.99 - $ 599.99
Current price $ 599.99
 More payment options

Pickup available at Truetone Music

Usually ready in 1 hour

Every year, the Fender Custom Shop releases a limited edition set of pickups, and they always go quick.  As a Showcase level dealer,  Truetone is fortunate enough to get a few sets.  For 2025, it's the amazing Dual-Mag II Strat pickups, and they are sure to go quick - we only have 3 to offer.

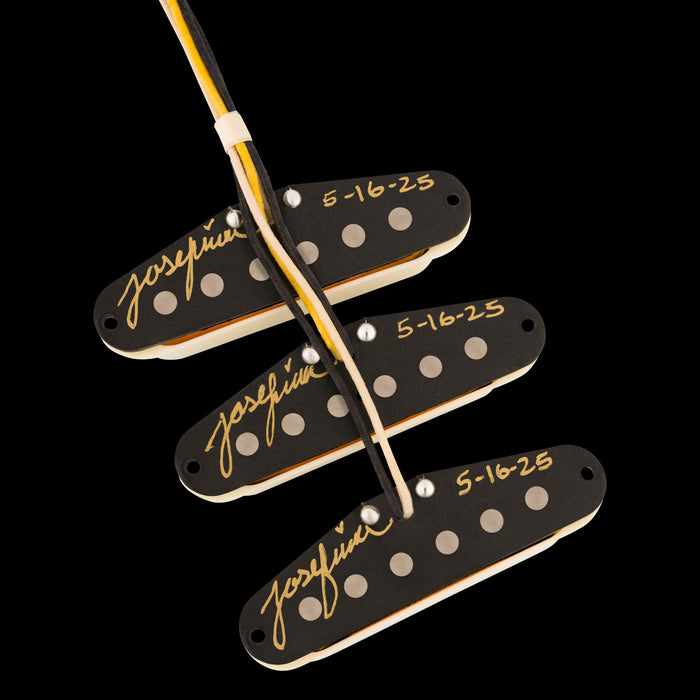

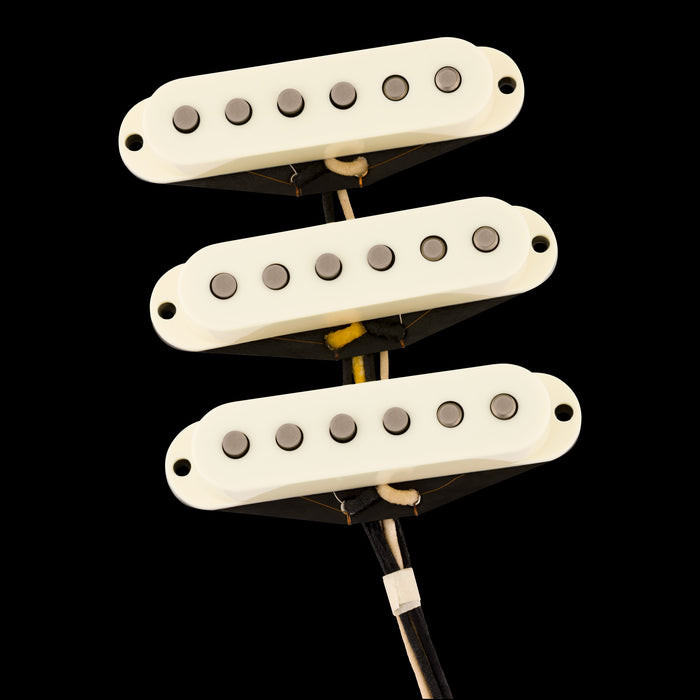

Hand wound in the Fender® Custom Shop by Master Pickup Winder, Josefina Campos, the Dual-Mag II Strat pickups produce well-balanced tone with shimmering, clear highs and balanced, rich lows courtesy of a mix of alnico 2 and 5 magnets. Featuring unbeveled alnico 5 magnets from the low E through G and hand-beveled alnico 2 magnets for the B and high E. Each pickup is wrapped with copper shielding tape to reduce noise.

Featuring a custom stagger with a “low G” magnet that provides a smooth transition from the wound to plain strings. The alnico 5 beneath the G makes that string “sing” just right and the alnico 2 B&E magnets are slightly taller than vintage spec to help create string-to-string balance. The Dual Mag II Strat® pickup is quite faithful to its name with two magnets that give you one of the clearest, most well-balanced sounds you'll ever hear.

Features

  • Hand Wound by Josefina Campos
  • Alnico 5 on low E through G and hand-beveled alnico 2 on B and high E
  • RWRP middle pickup to eliminate hum in positions 2 and 4
  • Formvar-coated magnet wire improves overall brightness
  • Wrapped with copper shielding tape to reduce noise
  • Cloth wire and fiber bobbin

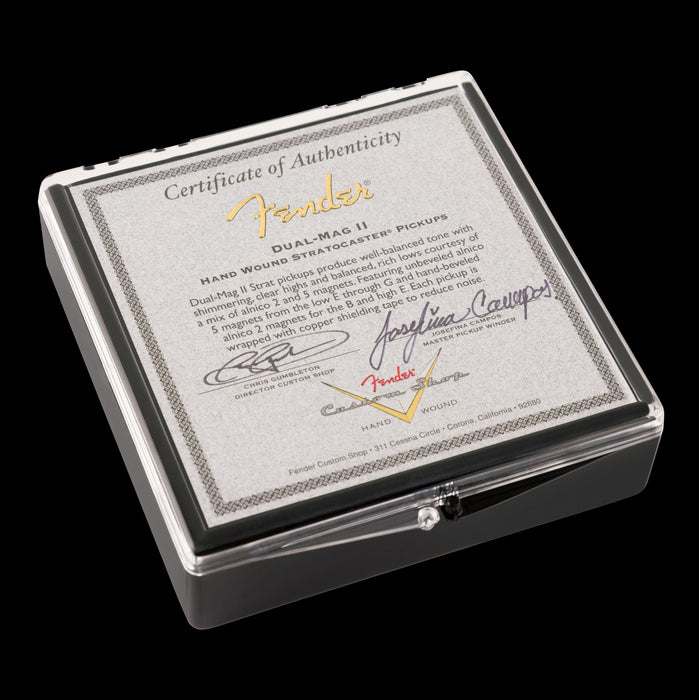

  • Signed certificate of authenticity
  • Includes installation hardware

0992381000

Product Specs

General

Series: Custom Shop
Orientation: Right-Hand
Color: Aged White
Cover Color: Aged White
Country Of Origin: US

Electronics

Pickup Configuration: SSS
Lead Wire: Cloth-covered
Magnet Type: Alnico 2 and 5
Magnet Wire: Formvar-coated
Pole Pieces: Staggered
Bobbin Material: Fiber
Output: Moderate
DC Resistance: Neck: 5.85k, Middle: 5.9k, Bridge: 5.95k
Inductance: Neck: 2.65H, Middle: 2.72H, Bridge: 2.84H
