The Fender® American Vintage II series presents a remarkably accurate take on the revolutionary designs that altered the course of musical history. Built with period-accurate bodies, necks and hardware, premium finishes and meticulously voiced, year-specific pickups, each instrument captures the essence of authentic Fender craftsmanship and tone. By 1973, now-classic CBS design cues had become standard spec and were widely used by rock, funk, fusion and prog players around the world. Weekly late night music television shows like Don Kirshner's Rock Concert, In concert and Midnight Special provided more exposure than ever for Fender instruments, further cementing the Stratocaster's dominance as a pop culture phenomenon.
The instruments in the American Vintage II series are direct descendants of the original Fenders: designed for players with a fine appreciation for vintage Fender tone and feel and built with unmatched quality, down to the last screw. These are Fender electrics in their purest form: Fender American Vintage II, the stuff of legends.
Product Specs
General
Series: Dealer Exclusive
Orientation: Right-Hand
Color: Olympic White
Country Of Origin: US
Neck

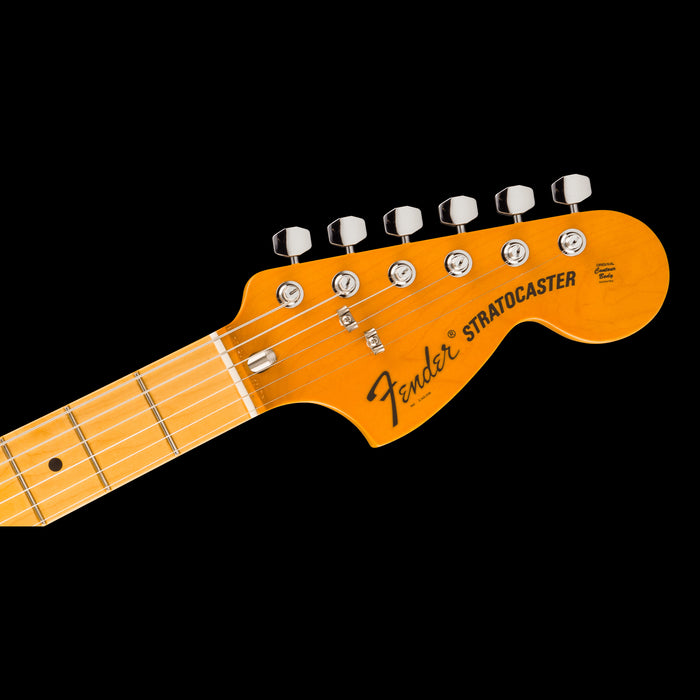

Headstock: Large '70s Style
Neck Material: Maple
Neck Finish: Gloss Polyurethane
Neck Shape: 1973 "C"
Neck Construction: 3-Bolt
Fingerboard Radius: 9.5" (241 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Side Dots: Black
Number of Frets: 21
Truss Rod: Bullet Style
Truss Rod Nut: Bullet Style
String Nut: Bone
Nut Width: 1.650" (42 mm)
Nut Material: Bone
Fret Size: Medium Jumbo
Scale Length: 25.5" (648 mm)
Body
Body: Ash
Body Finish: Gloss Polyurethane
Body Shape: Stratocaster®
Body Style: Solid Body
Body Material: Ash
Hardware
Bridge: American Vintage Synchronized Tremolo with “Ash Tray” Bridge Cover
Bridge Cover/Tailpiece: Includes Chrome Bridge Cover
Bridge Mounting: 6-Screw Vintage-Style
Tremolo Block: Cold Rolled Steel
Pickguard: 3-Ply Parchment
Pickup Covers: Aged White
Control Knobs: Aged White
Switch Tip: Aged White
Hardware Finish: Nickel/Chrome

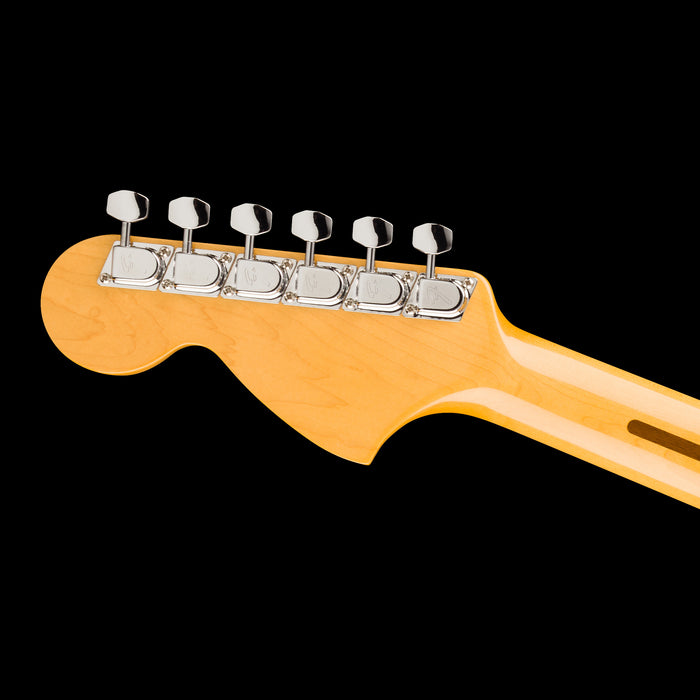

Tuning Machines: Pure Vintage Fender® “F” Stamped
String Trees: Dual-Wing
Strings: Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406
Tremolo Arm: Screw-In
Neck Plate: 3-Bolt “F” Stamped with Micro-Tilt™, Serialized
Strap Buttons: Vintage-Style
Electronics
Bridge Pickup: Pure Vintage '73 Single-Coil Strat®
Middle Pickup: Pure Vintage '73 Single-Coil Strat®
Neck Pickup: Pure Vintage '73 Single-Coil Strat®
Pickup Configuration: SSS
Controls: Master Volume (with S-1™ Switch), Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup)
Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Special Electronics: S-1™ Switch Adds Neck Pickup Into Positions 1 and 2
Model No.: 0170252805
