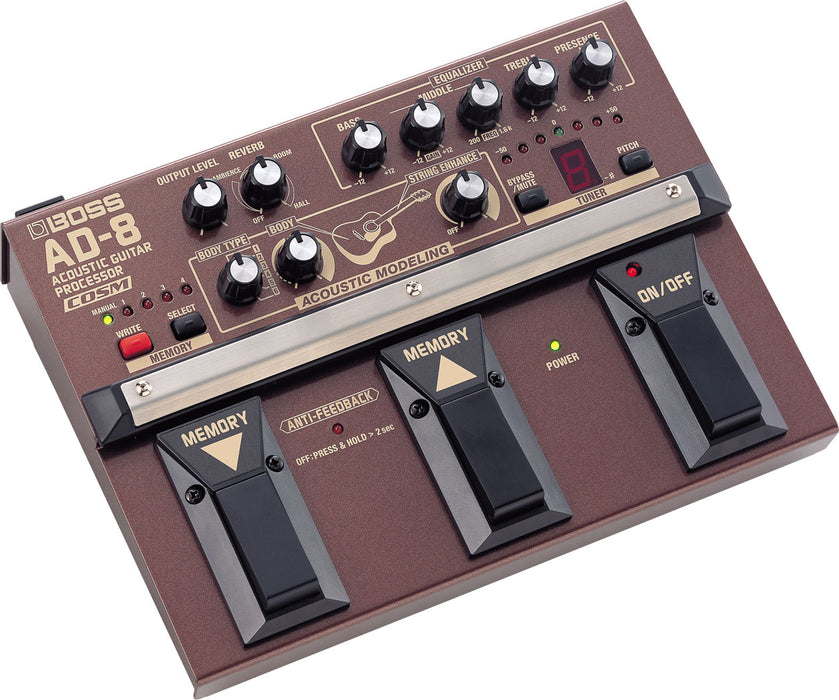

Boss AD-8 Acoustic Guitar Processor Guitar Pedal
MODELS SIX OF THE WORLD’S FINEST ACOUSTICS!
The BOSS AD-8 Acoustic Guitar Processor uses COSM modeling technology to transform the piezo pickup sound of an ordinary acoustic into six high-end acoustic guitars. The versatile AD-8 can also simulate the warm sound created by miking the guitar's neck and body -a world's first!
- Floor-based acoustic guitar processor featuring COSM Acoustic Guitar Modeling technology
- Turns ordinary piezo-equipped acoustic guitars into six of the world's finest acoustics
- Body and String Enhance controls simulate warm, miked acoustic sounds
- High-quality reverb tailored for acoustic guitar, 4-band EQ and Anti-Feedback
- Onboard chromatic tuner with Mute function and quick pedal-based operation
- 4 Preset memory locations for switching acoustic sounds instantly
- Balanced XLR outputs allow direct connection to PA systems
- Nominal Input Level-20 dBuInput Impedance20 M ohmsNominal Output Level-20 dBuOutput ImpedanceUNBALANCED OUTPUT/ELECTRIC GUITAR AMP OUTPUT: 1 k ohms
BALANCED OUTPUT: 600 ohms

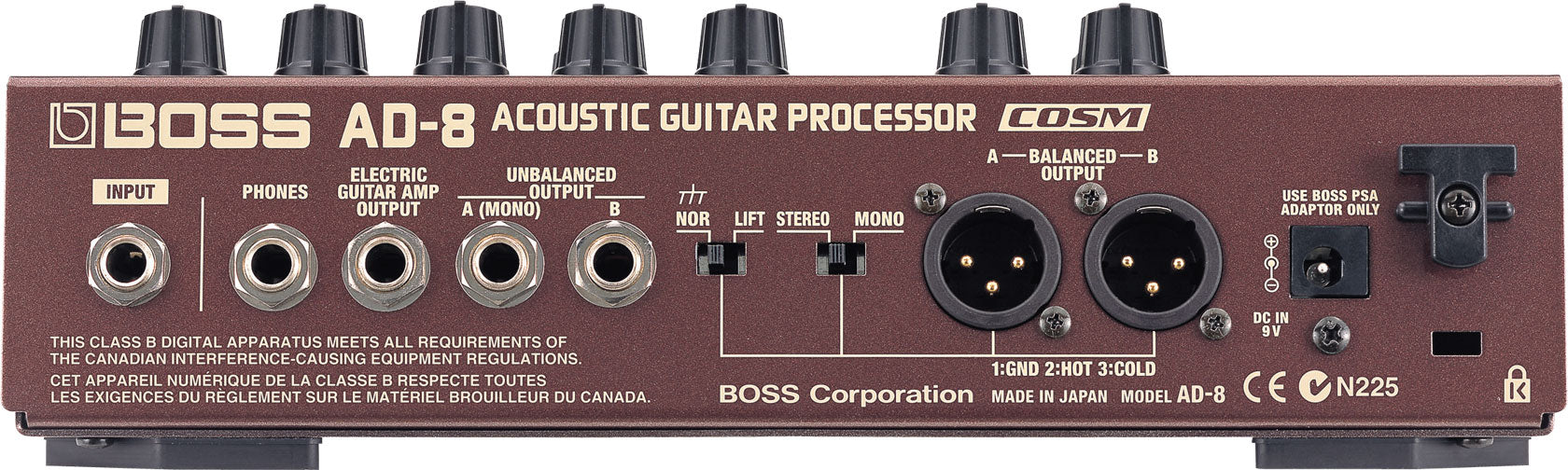

PHONES: 33 ohmsRecommended Load Impedance10 K ohms or greaterReference PitchA4 = 438 to 445 Hz (1 Hz steps)Tuning Accuracy+/-3 centsDisplay7 segment LEDConnectorsINPUT Jack (1/4" phone type)
PHONES Jack (Stereo 1/4" TRS phone type)
ELECTRIC GUITAR AMP OUTPUT Jack (1/4" phone type)
Unbalanced Output A (mono), B (1/4” phone type)
Balanced Output A, B (XLR type)
AC Adaptor In (PSA Series)Power SupplyDC 9 V; Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA Series)Current Draw120 mAAccessoryDry battery (R6 (AA) type) x 6OptionAC Adaptor (PSA Series)SIZE AND WEIGHT ( EXCL. AC ADAPTOR )Width250 mm
9-7/8 inchesDepth180 mm
7-1/8 inchesHeight60 mm
2-3/8 inchesWeight1.9 kg
4 lbs. 4 oz.
