Earthquaker Devices Tone Job Boost Guitar Effect Pedal
The Tone Job is a complete tone enhancement tool designed around a stereo preamp to cover as much frequency range as possible. What does this mean for you, the user? It means it can handle a wide variety of frequencies from electrical guitars, bass guitar, synthesizer machines and just about anything else you can plug in. The treble, bass and middle controls will cut or boost up to 20db. In addition to that, the level control will boost the signal (post EQ) up to 5 times the input depending on where the dial is set. A simple, perfect pedal to place at the end of your effect chain to boost output and fine tune your tone or at the front of the chain to alter the character of your guitar and breath new life into tired old dirt.

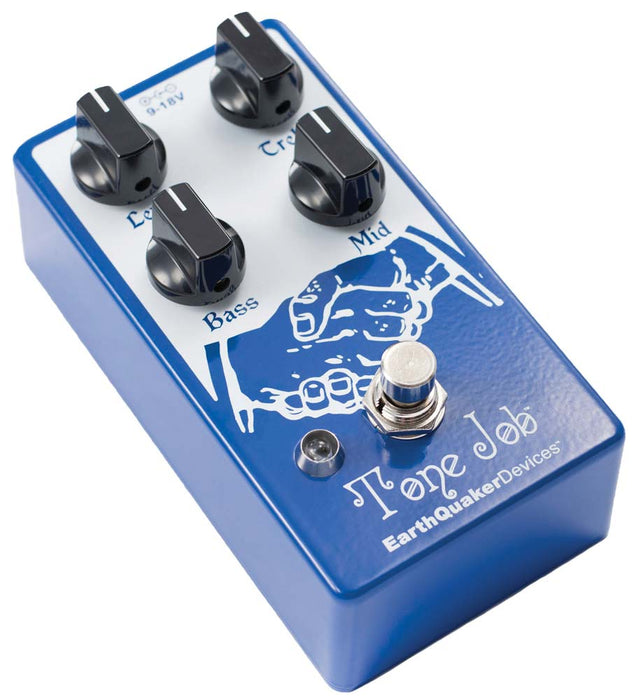

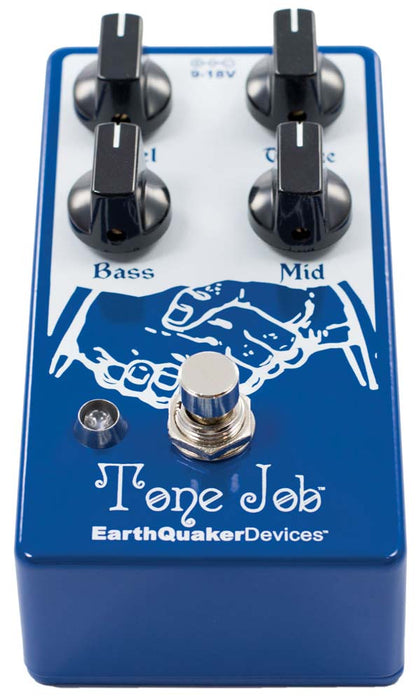

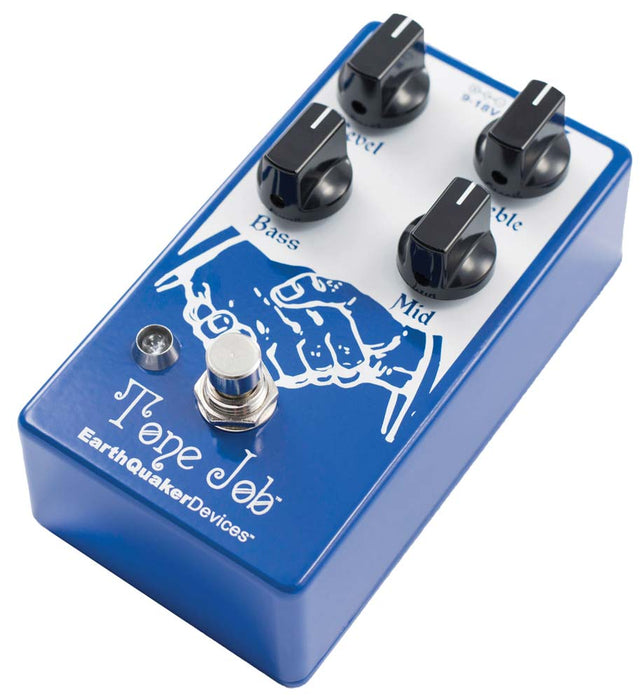

Level: Post EQ volume control. Can boost the signal up to 5x the input. Unity is around 10 O’Clock.
Treble: Noon is flat, boost is clockwise from noon, cut is counter clockwise from noon.
Bass: Noon is flat, boost is clockwise from noon, cut is counter clockwise from noon.
Middle: Noon is flat, boost is clockwise from noon, cut is counter clockwise from noon.
Treble affects frequencies from around 2k Hz up, bass affects frequencies from around 500 Hz down. The middle is an adjustable resonant filter acting as a midrange control with its center frequency around 1k Hz. Treble and bass response are dependent on middle control settings.
Analog, true bypass and hand made one at a time in good old Akron Ohio.
4 5/8″ x 2 1/2″ x 2.25″ with knobs
Our pedals take a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages! Current draw is 10 mA.
