Eventide H90 Harmonizer Guitar Effect Pedal
Beyond the Effects Horizon
Premier Multi-FX pedal with 62 studio-quality effects and flexible I/O
The H90 Harmonizer® is Eventide's next-generation multi-effects pedal. Whether you want high-quality bread and butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind. Discover why top artists and producers have chosen Eventide through the years with 62 effect algorithms and hundreds of Program combinations curated for a variety of instruments and genres.
With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig. New Technology, New Effects H90 Harmonizer features modern ARM-based architecture derived from the world's most powerful effects processor, Eventide's flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch shifting effects of the H9 Max but goes far beyond with 10 new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide's proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for nextgen effects both long imagined and unimaginable.
Seven new algorithms exploit the H90's raw power:
- Polyphony – Pitch shift chords with ease using SIFT technology. Create rising or sinking chorus and crystals-type effects. Use Freeze to generate pad textures.
- Prism Shift – Generate three voices from a single chord whose intervals are separated, staggered, and pitch-shifted to create four arpeggio types spanning up to three octaves.
- Even-Vibe – Authentic Uni-Vibe emulation reimagined in stereo with envelope followers.
- Head Space – Vintage four-head Tape Delay with classic and modern creative tone shaping controls for grit, spatiality, and character.
- Bouquet Delay – Bucket Brigade Delay (BBD) with modulation, LoFi, and Modern flavors; includes Pitch jump and Self-oscillation performance functions.
- Wormhole – A mega-sized hyper-modulated reverb with pitch warping performance.
- Weedwacker – Two-stage, serial overdrive reminiscent of a famous green pedal.
- Three algorithms from Eventide's acclaimed rackmount processors place these legendary effects at your feet:
- Instant Phaser – Authentic emulation of the world's first studio Phaser from 1971 notably used in Led Zeppelin's "Kashmir."
- Instant Flanger – Authentic emulation of the world's first studio Flanger heard on countless hit records.
- SP2016 Reverb – The legendary Room, Stereo Room, and Hi-density plate from the original studio rackmount.
That's not all. All previous H9 Max algorithms have been enriched with features previously only available on the dot9 pedals and plug-ins. Others have been enhanced to take advantage of the new advanced pitch-shifting.
Twin-Turbo Program Power
Two of these already impressive algorithms can be combined into a Program to create novel, inspiring sounds. H90 Harmonizer's dual algorithm design features true spillover between Programs, series or parallel effect routing, and flexible I/O.

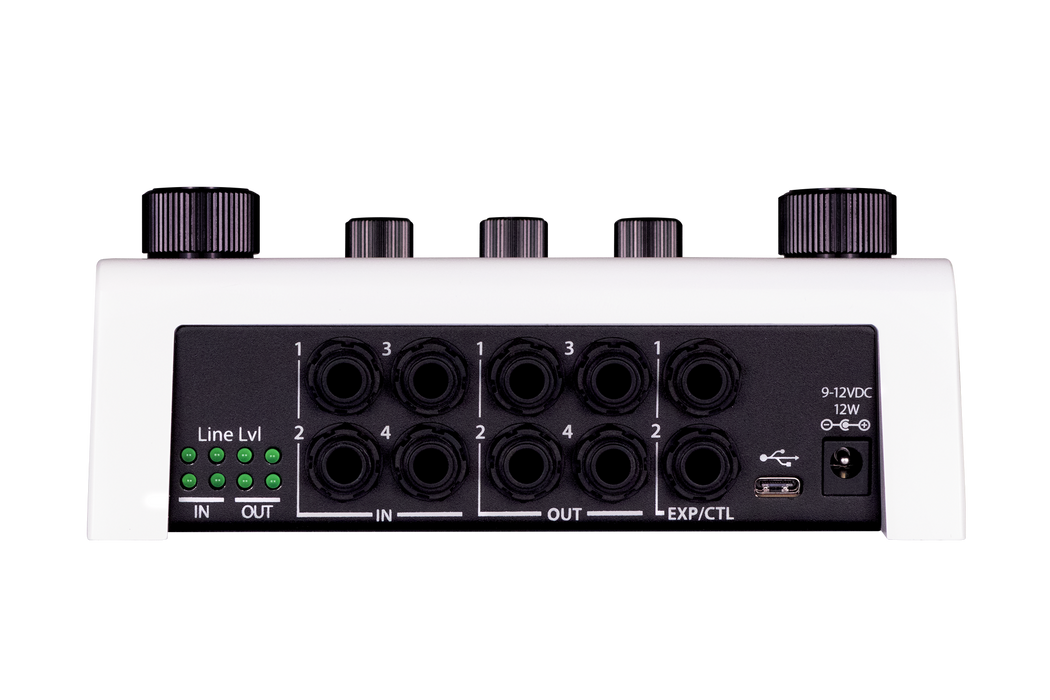

Two mono inserts allow you to incorporate outboard effects in any configuration or combine them for one stereo insert. Optimize your signal flow with instrument or line level operation and full gain controls to incorporate H90 into your rig or make it the centerpiece.
Dual Mode lets you do things like connect using the four-cable method or process two Independent stereo instruments at once! Let the H90 Harmonizer take you beyond the effects horizon.
Live Performance Machine

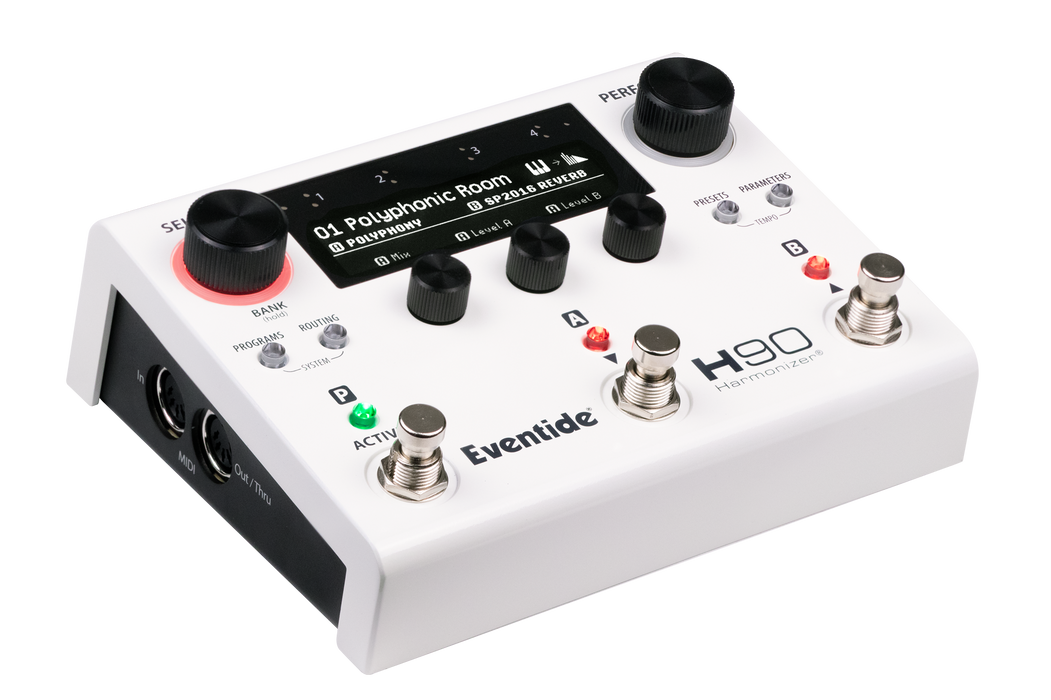

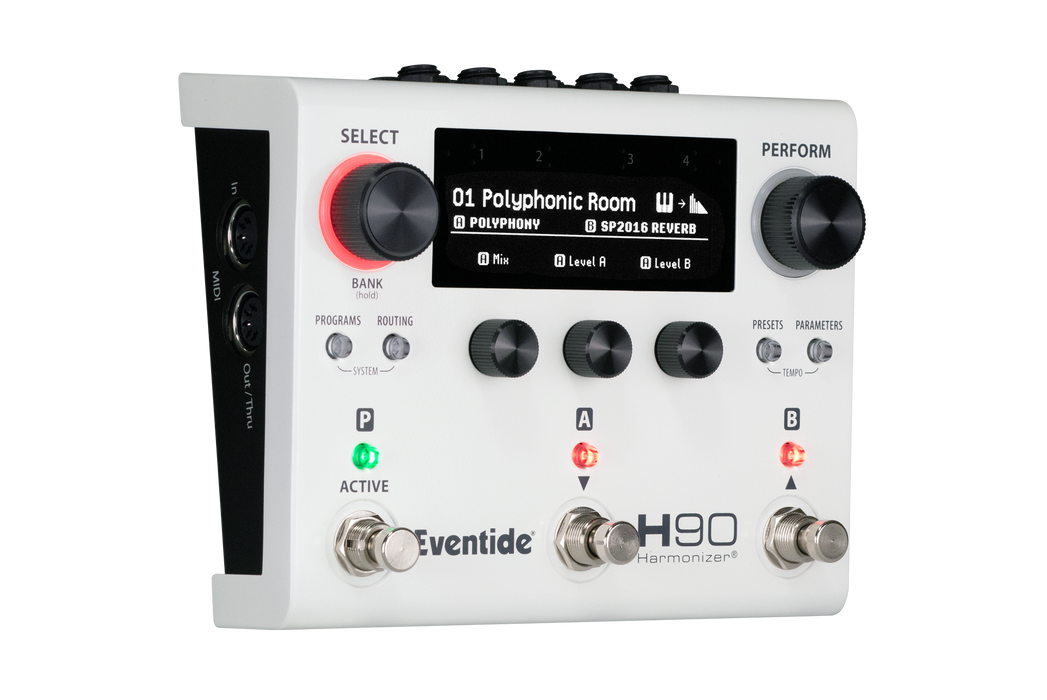

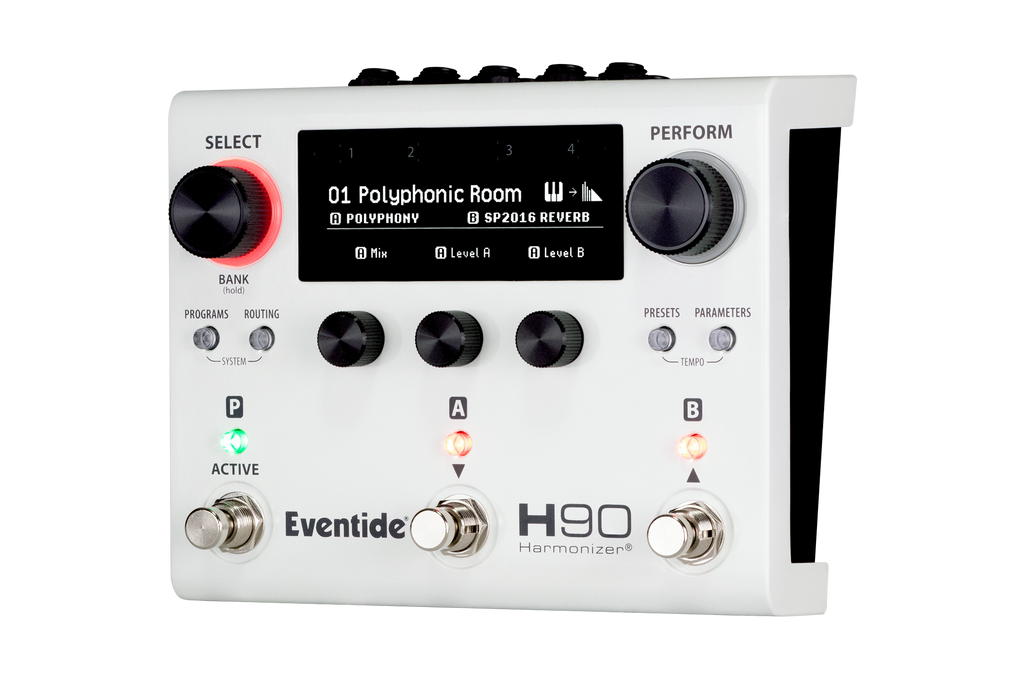

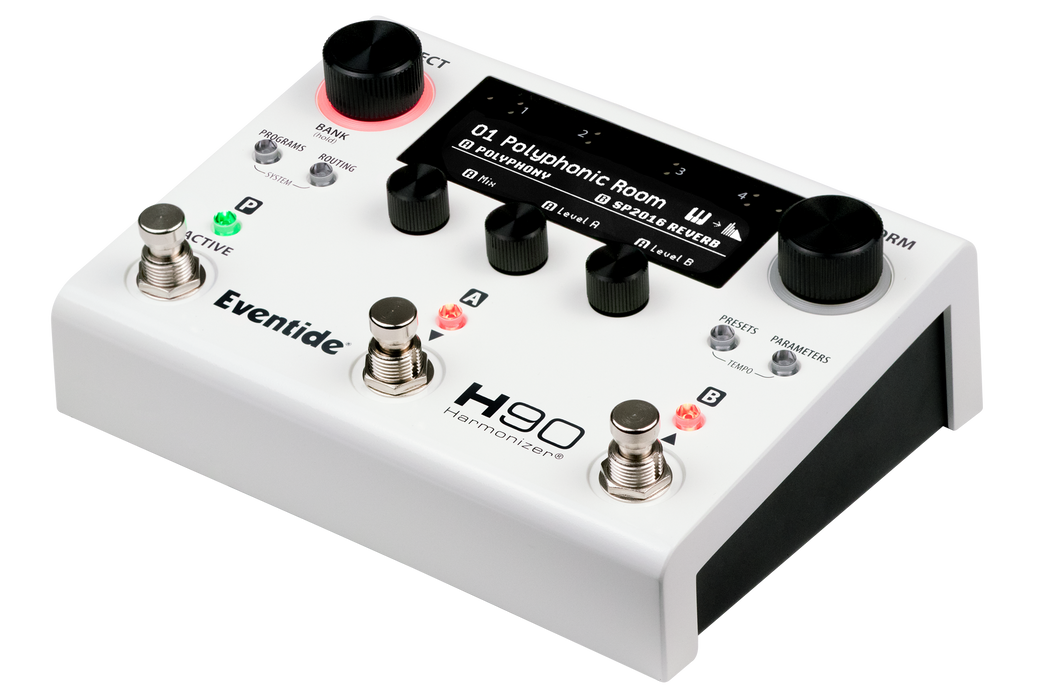

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback. Two large push knobs allow you to switch between SELECT, BANK, and PERFORM modes with ease.
In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset, insert bypass or momentary states; use them to engage options like reverb freeze, pitch flex, or delay repeat; make multiple instantaneous parameter changes with three HotSwitches. The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary
switches with up to three buttons. If that wasn't enough, take advantage of the pedal's extensive MIDI control.
The H90 comes with hundreds of factory Programs which can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of 3 Programs, perfect for cueing up a range of sounds for a song. Organizing your favorite sounds has never been easier, simply load a new Playlist and you’re ready for the next gig!
- Preloaded with 62 effect algorithms:
- 10 new effect algorithms: Polyphony, Prism Shift, Bouquet Delay, Head Space, Weedwacker, Even-vibe, Wormhole, Instant Flanger, Instant Phaser, and SP2016 Reverb
- Includes all 52 effect algorithms from the H9 Max Harmonizer with enhanced features and improvements
- New low latency Polyphonic Pitch Shifting with SIFT (Spectral Instantaneous Frequency Tracking) technology
- ARM-based architecture lays the foundation for new and exciting creative effects.
- Use two algorithms at once per Program
- True spillover between Programs
- Route effects in series or parallel
- Instrument or Line level operation
- Two mono inserts or one stereo insert can be positioned anywhere in the signal chain
- Dual mode for processing two independent stereo signals at once
- Five push-turn knobs for more tactile control
- Two expression inputs for pedals, up to 3-button auxiliary switches, and CV signals
- Use H90 Control software to edit Programs, create lists, and update firmware on a Mac or PC
- Built-in tuner
Part no: 1225-000
