Fender Custom Shop 1967 Stratocaster Heavy Relic Aged Black Electric Guitar With Case

Fender Custom Shop 1967 Stratocaster Heavy Relic Aged Black Electric Guitar With Case

SKU 00FCS235
by Fender
Sold out
$ 5,050.00 - $ 5,050.00
$ 5,050.00
$ 5,050.00 - $ 5,050.00
$ 5,050.00

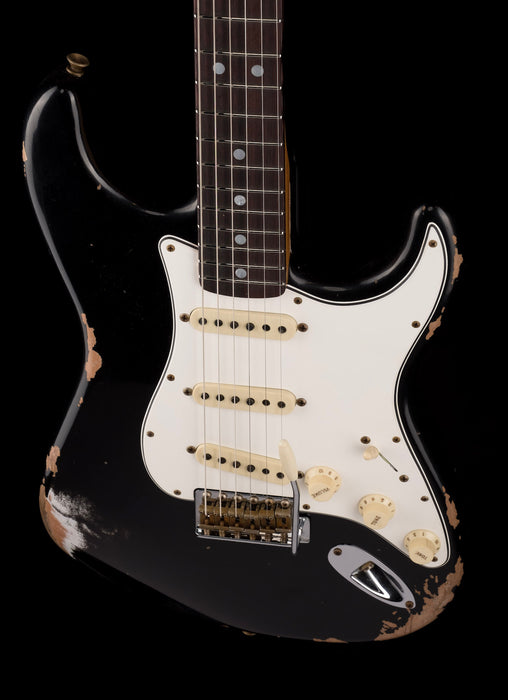

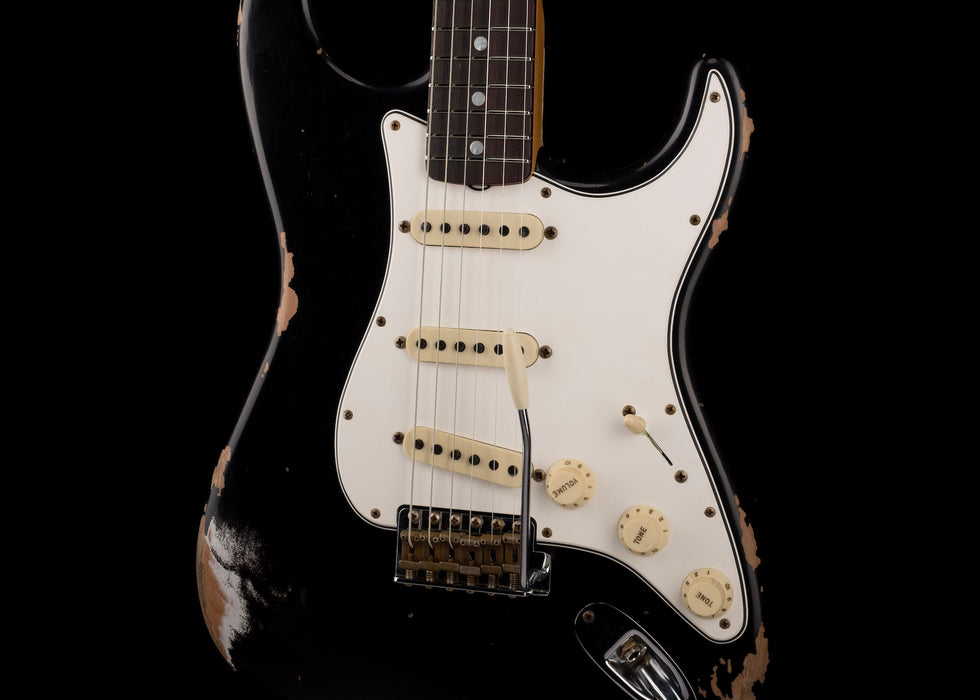

1967 is a particularly notable year for the Stratocaster. The introduction of the Jaguar and Jazzmaster provided some sibling competition for the Strat® by then, and production numbers were lowered as Fender anticipated phasing it out completely (!). Cut to the June 1967 Monterrey Pop Festival, however, where Jimi Hendrix mesmerized the audience with a monumentally legendary performance that seemed to singlehandedly return the Stratocaster to the height of fashion, forever changing the fate of the instrument. The Fender Custom Shop 1967 Stratocaster Heavy Relic evokes that memorable year’s model in all its glory, with all the scratches, dents and dings of a well-loved workhorse.

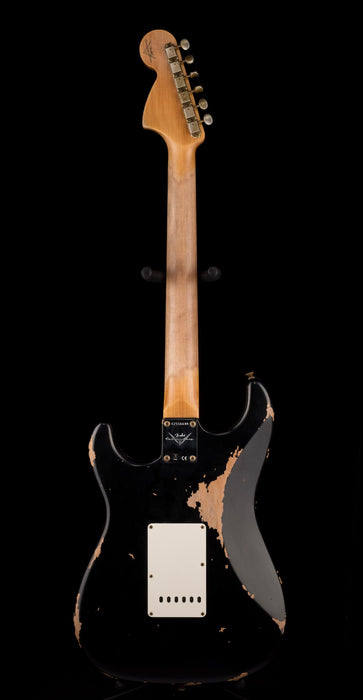

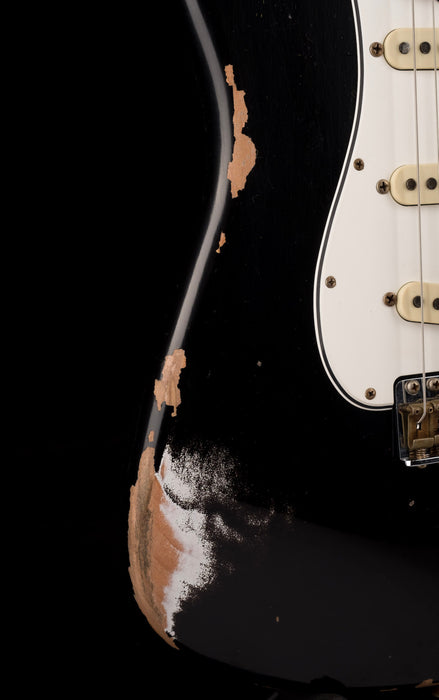

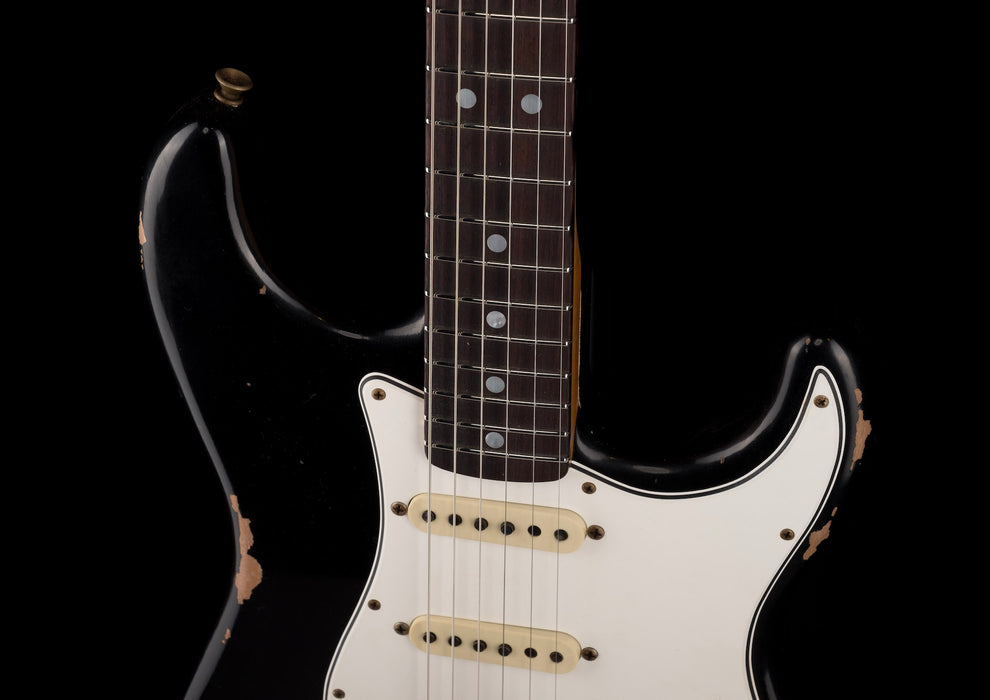

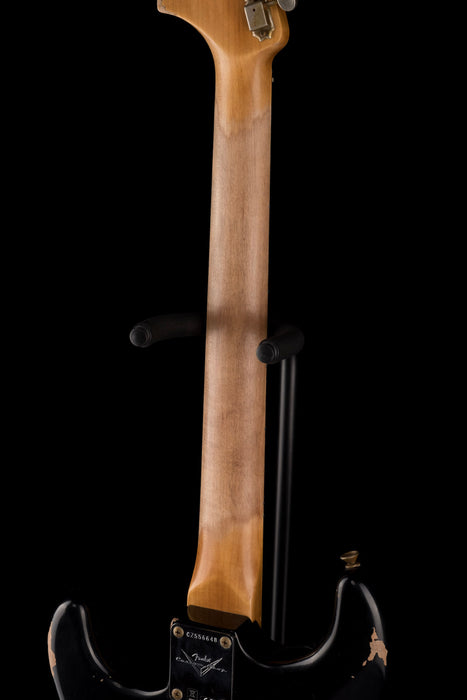

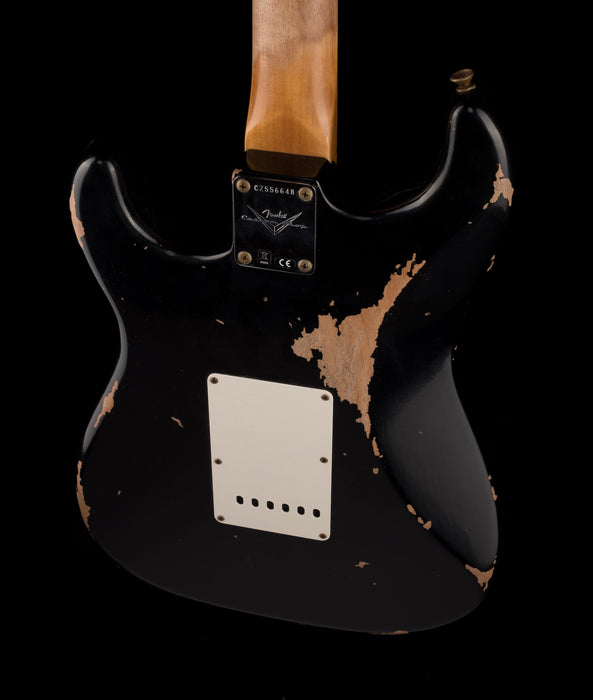

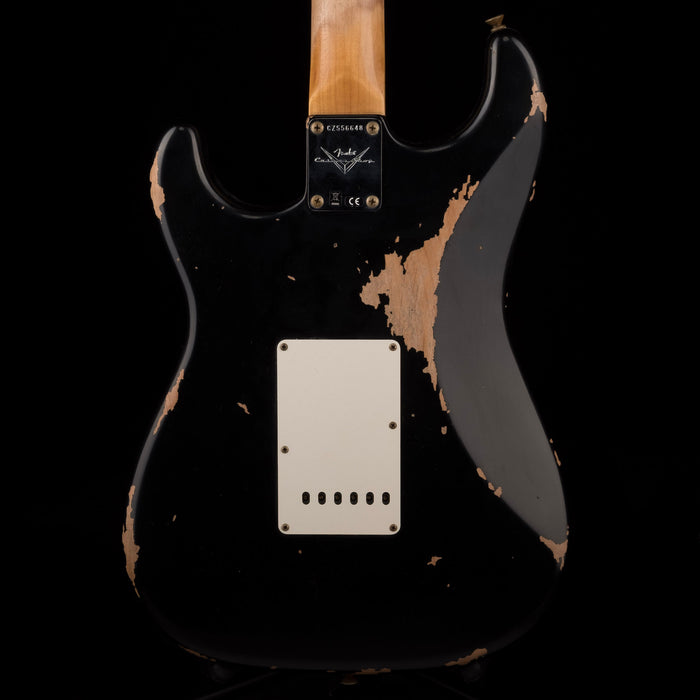

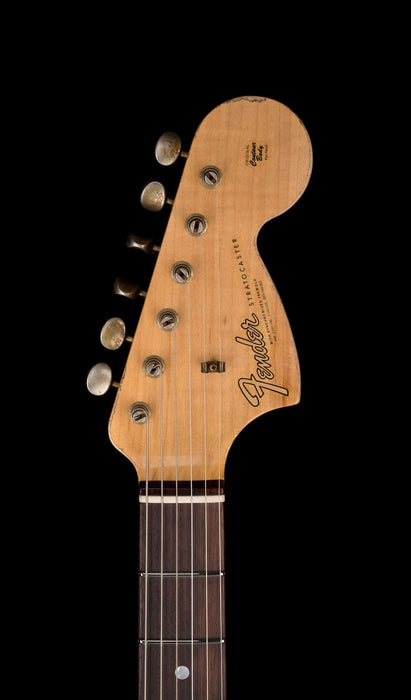

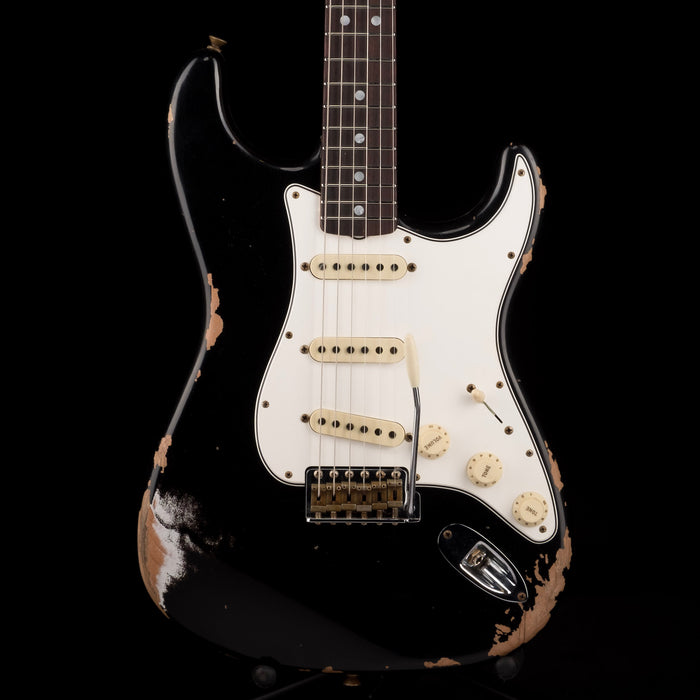

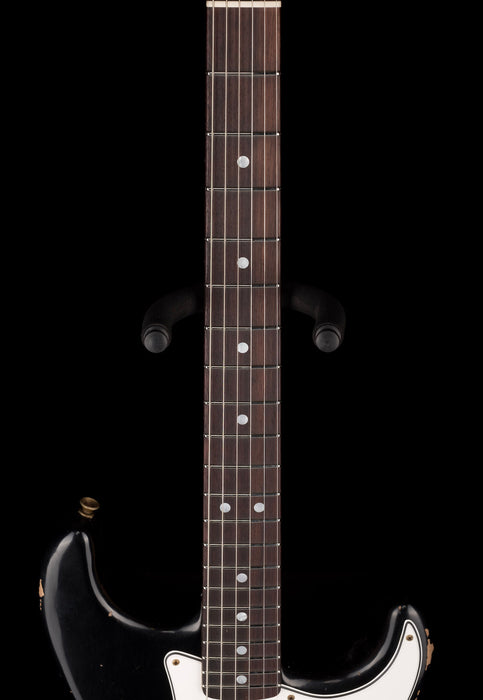

A two-piece select alder body wears a Heavy Relic lacquer finish, while the tinted rift-sawn maple neck features a large headstock, ’66 “oval C” profile and 9.5”-radius round-lam rosewood fingerboard with 21 narrow tall frets for streamlined play.

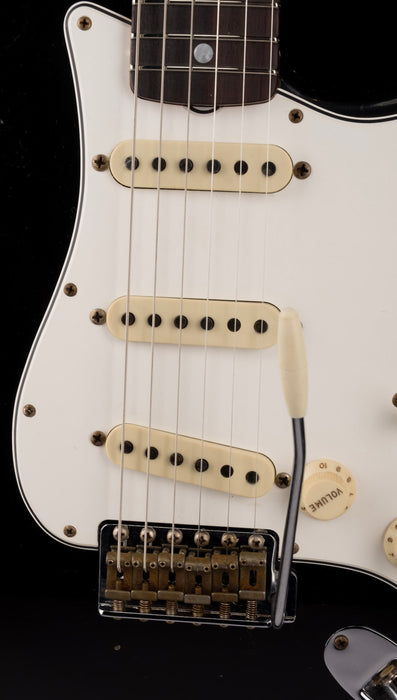

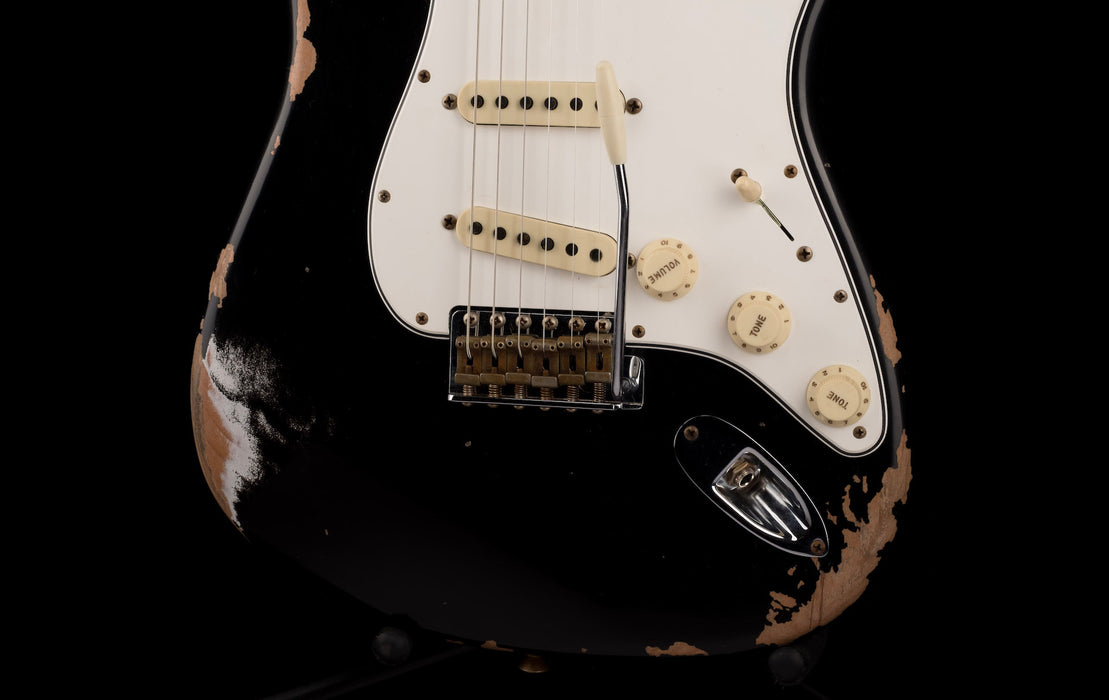

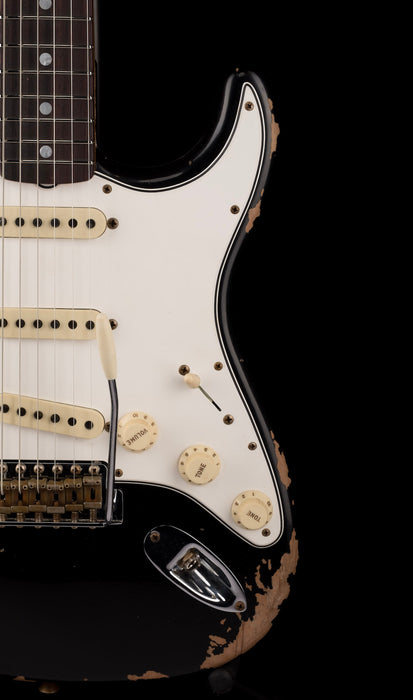

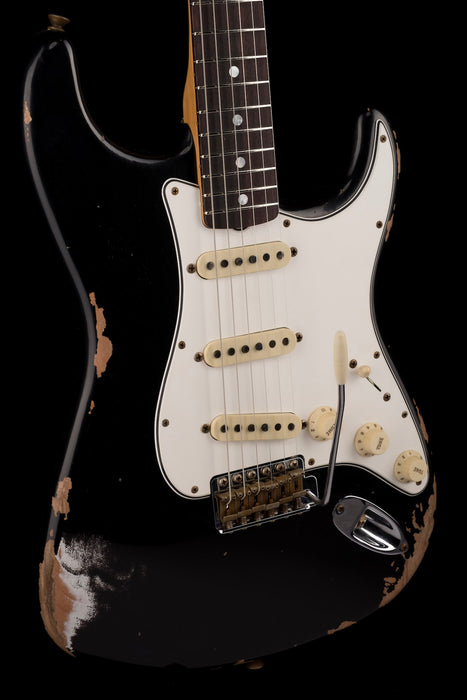

Hand-wound pickups include a Texas Special™ at the bridge, a reverse-wound/reverse-polarity Fat ’50s in the middle and a ’69 at the neck for an ultimate tonal combination, with a five-way switch and Vintage Modified #2 wiring with the tone saver control.  This allows you to roll down the volume without losing tone, and sets up the second tone control for the bridge pickup only (positions 1 & 2).

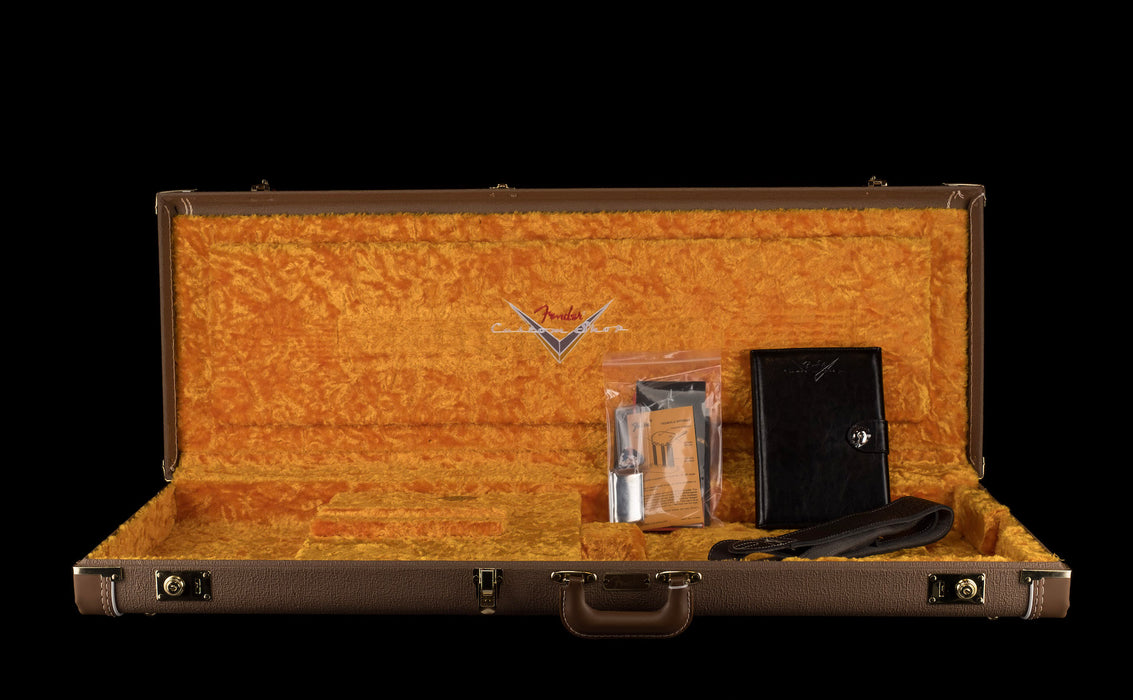

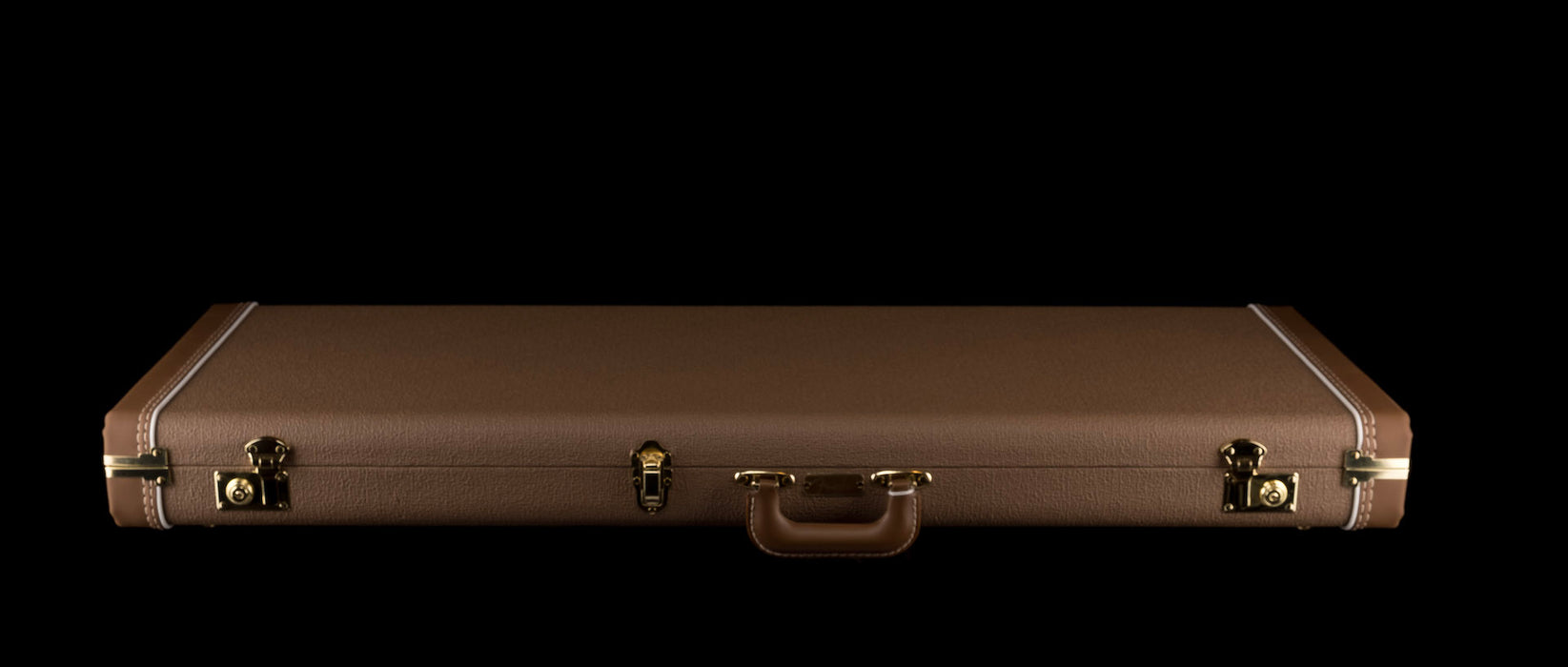

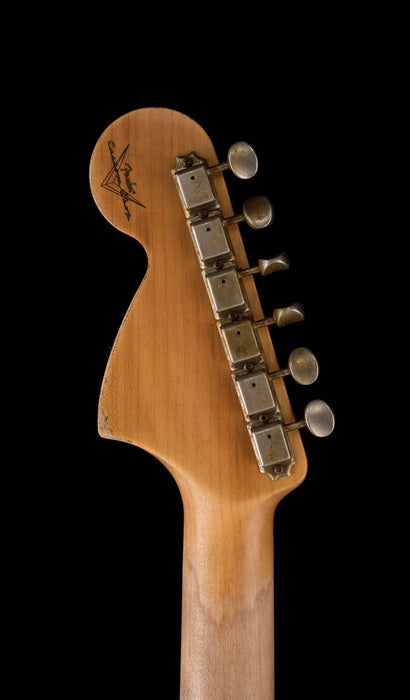

Other features include a Custom Shop vintage-style synchronized tremolo, vintage-style tuning machines, bone nut and wing string tree with nylon spacer. Also includes deluxe hardshell case, strap and certificate of authenticity.
This is one of the cooler Strats we've had in here, and we don't get many late 60's models - come to Club Fender @ Truetone Music to experience it today, or order right here right now.


Product Specs

  • Series: Time Machine™
  • Part # 9235001429
  • Serial # CZ556648

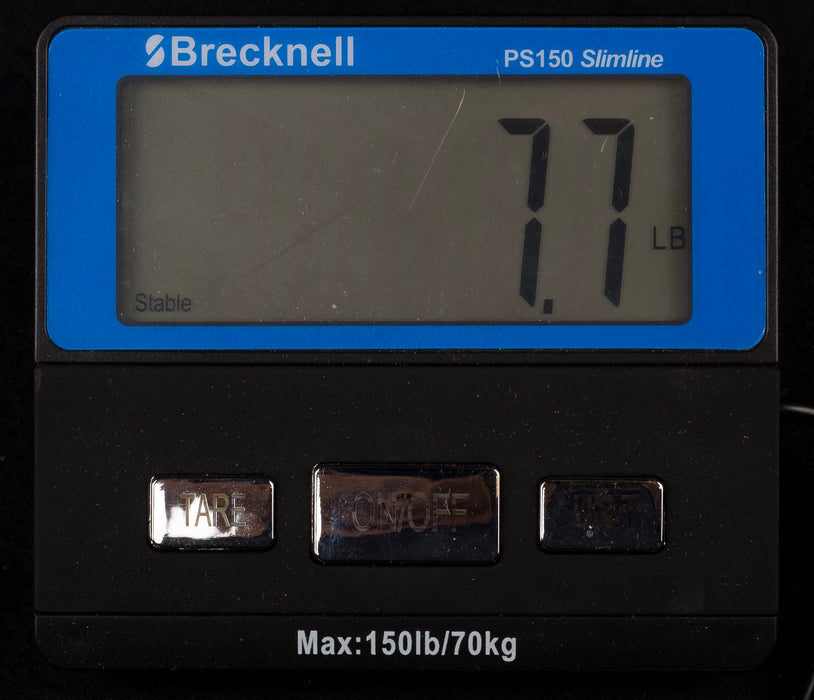

  • Weight:  7.7 lbs
  • Color: Aged Black
  • Finish: Nitrocellulose Lacquer
  • Body: 2-Piece Alder
  • Neck: Rift Sawn Maple
  • Neck Shape: 1966 Oval "C"
  • Neck Thickness 1st Fret: .850"
  • Neck Thickness 12th Fret: .910"
  • Number of Frets: 21
  • Nut Material: Bone
  • Nut Width: 1.650"
  • Neck Butt Width: 2.200"
  • Fingerboard Material: AAA Rosewood
  • Fingerboard Radius: 9.5"
  • Fret Size: Narrow Tall (6105)
  • Headstock Thickness: 0.590"
  • Scale Length: 25.5" (648 mm)
  • Position Inlays: Mother of Pearl Dot 7mm
  • Side Dots: Mother of Pearl
  • Truss Rod: Vintage-Style Heel Adjust
  • Truss Rod Nut: Vintage-Style Slotted
  • Tuning Machines: Vintage-Style
  • String Trees: Single Wing with Nylon Spacer
  • Bridge: Custom Shop Vintage Synchronized Vintage Tremolo
  • Tremolo Arm: Vintage-Style Tremolo Arm
  • Switch Tip: Vintage White
  • Hardware Finish: Nickel/Chrome

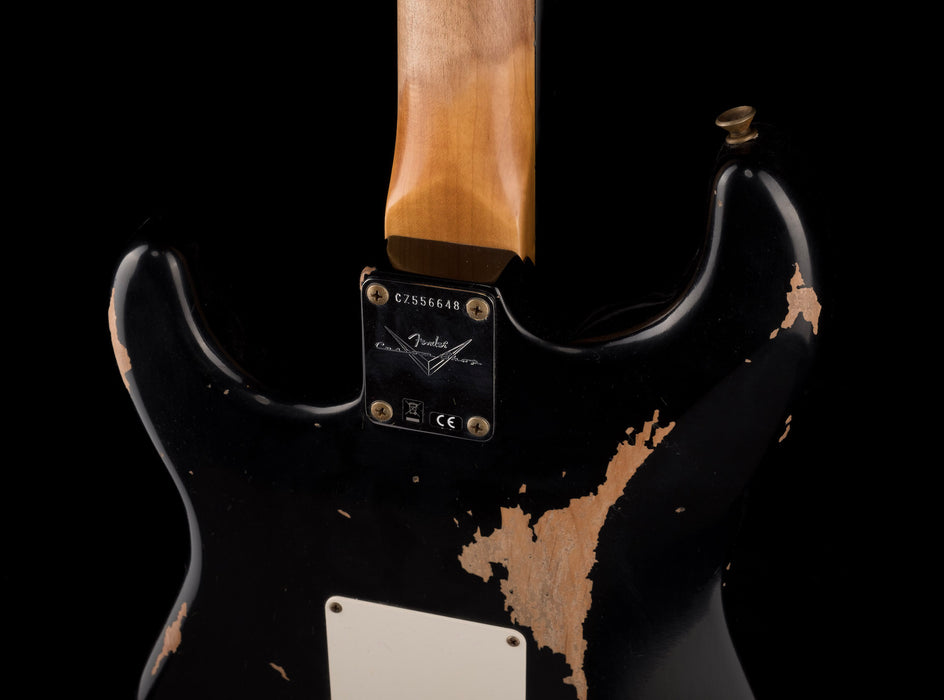

  • Neck Plate: 4-Bolt with Custom Shop "V" Logo
  • Pickguard: 3-Ply Parchment
  • Control Knobs & Pickup Covers: Vintage White
  • Bridge Pickup: Custom Shop Hand-Wound Texas Special™ Single-Coil Strat®
  • Middle Pickup: Custom Shop Hand-Wound Fat '50s RWRP Single-Coil Strat®
  • Neck Pickup: Custom Shop Hand-Wound '69 Strat® Single-Coil
  • Switching: 5-Position Blade: Position 1. Bridge Pickup Position 2. Bridge and Middle Pickup Position 3. Middle Pickup Position 4. Middle and Neck Pickup Position 5. Neck Pickup
  • Wiring:  Vintage Modified # 2
  • Included Accessories: Deluxe Hardshell Case, Strap and Certificate of Authenticity
