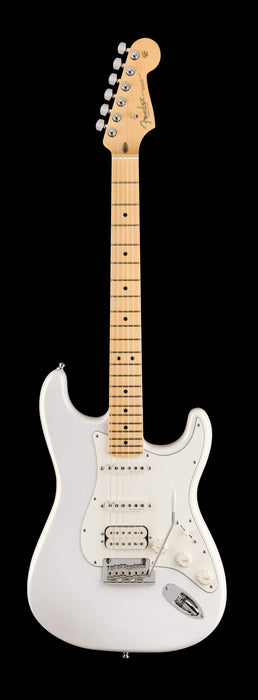

Fender Juanes Stratocaster Luna White with Case
- Alder Body With Luna White Satin Lacquer Finish
- Deep “C” Neck
- 10”-14” Compound Radius Maple Fingerboard
- Custom Juanes Ultra Noiseless™ Strat and Alnico II Humbucker Pickups
- Custom-Voiced 12db Mid-Boost Circuit activated by an S-1 Switch
- 2-Point Synchronized Tremolo with Bent Steel Saddles, Pop-In Tremolo Arm and Cold-Rolled Steel Block
PRODUCT SPECS
General
SERIES: Artist
ORIENTATION: Right-Hand
COLOR: Luna White
COUNTRY OF ORIGIN: US
Neck

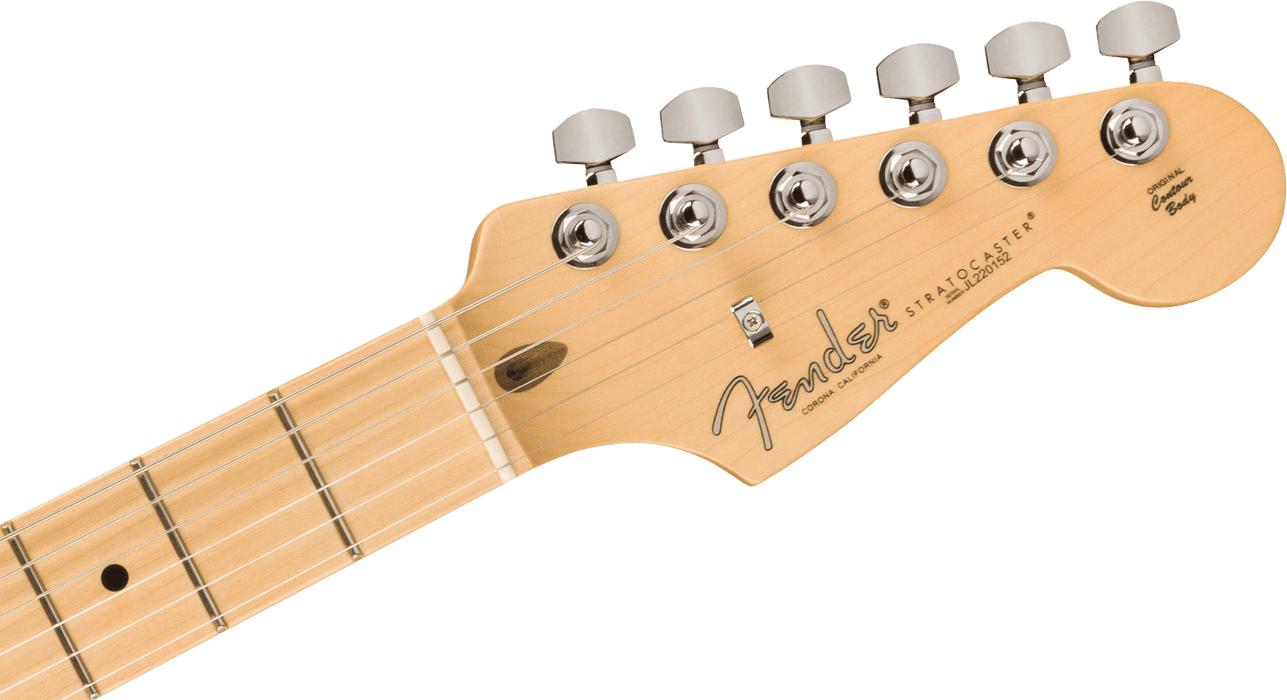

HEADSTOCK: Stratocaster®
NECK MATERIAL: Maple
NECK FINISH: Satin Urethane Finish on Back, Gloss Urethane Finish on Front
NECK SHAPE: Deep "C"
NECK CONSTRUCTION: 4-Bolt
FINGERBOARD RADIUS: 10" to 14" Compound Radius (254 mm to 355.6 mm)
FINGERBOARD MATERIAL: Maple
POSITION INLAYS: Black Dot
SIDE DOTS: Black
NUMBER OF FRETS: 22
TRUSS ROD: Head Adjust
TRUSS ROD NUT: 1/8" Hex Adjustment
STRING NUT: Bone
NUT WIDTH: 1.685" (42.8 mm)
NUT MATERIAL: Bone
FRET SIZE: Medium Jumbo
SCALE LENGTH: 25.5" (64.77 cm)
Hardware
BRIDGE: 2-Point Synchronized Tremolo with Bent Steel Saddles, Pop-In Tremolo Arm and Cold-Rolled Steel Block
BRIDGE MOUNTING: 2-Point Modern
TREMOLO BLOCK: Cold Rolled Steel
PICKGUARD: 3-Ply Parchment
PICKUP COVERS: Parchment
CONTROL KNOBS: Parchment Plastic
SWITCH TIP: Parchment
HARDWARE FINISH: Nickel/Chrome

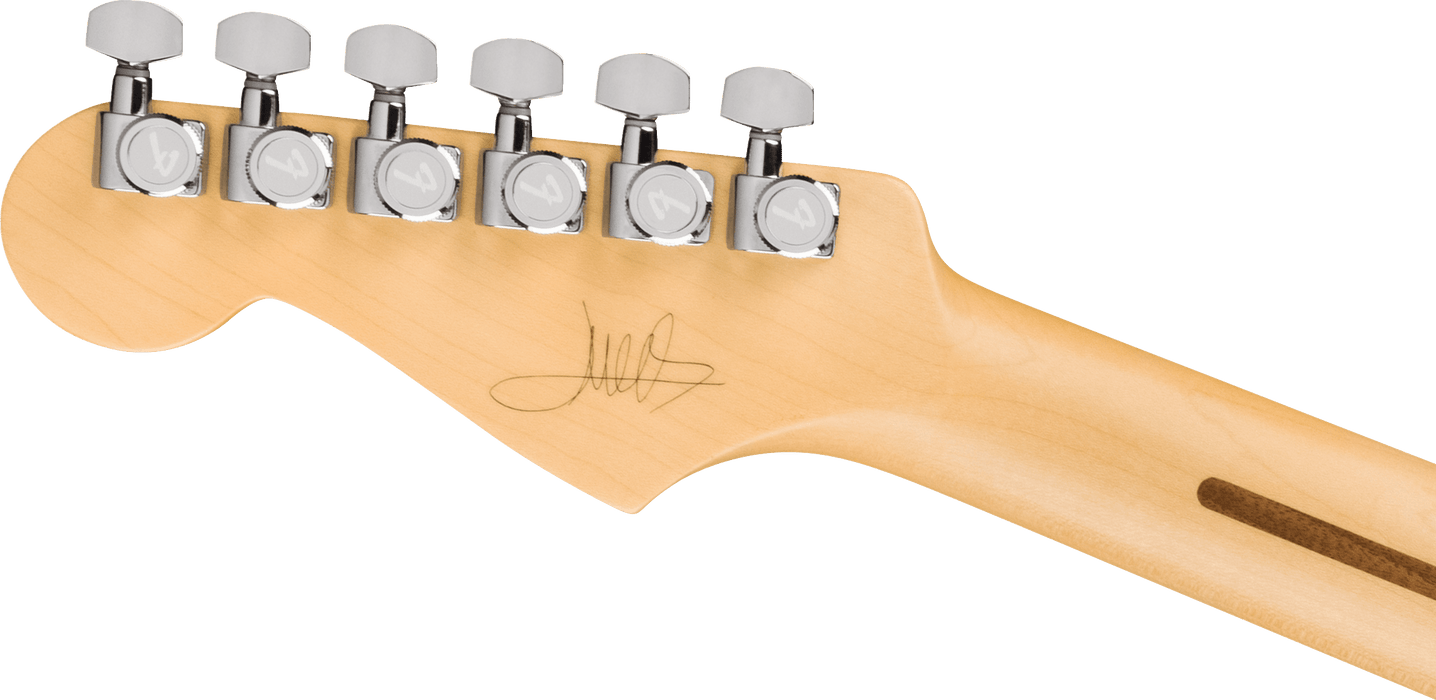

TUNING MACHINES: Fender® Deluxe Staggered Cast/Sealed Locking
STRING TREES: New Modern String Tree
STRINGS: Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406
TREMOLO ARM: Pop-In
NECK PLATE: 4-Bolt Asymmetrical with Custom Juanes Artwork
STRAP BUTTONS: Strap Locks
Body
BODY: Alder
BODY FINISH: Satin Nitrocellulose Lacquer
BODY SHAPE: Stratocaster®
BODY MATERIAL: Alder
Electronics
BRIDGE PICKUP: Custom Juanes Alnico II Humbucker
MIDDLE PICKUP: Custom Juanes Ultra Noiseless™ Strat®
NECK PICKUP: Custom Juanes Ultra Noiseless™ Strat®
PICKUP CONFIGURATION: HSS
CONTROLS: Master Volume with S-1™ Switch, Master Tone, Mid-Boost Output Volume
SWITCHING: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
AUXILIARY SWITCHING: S-1™ Switch to Activate Onboard Mid-Boost
SPECIAL ELECTRONICS: Custom-Voiced 12db Onboard Mid-Boost
Accessories
SADDLE HEIGHT WRENCH: .050" Hex (Allen) Wrench
TRUSS ROD WRENCH: 1/8" Hex (Allen)
