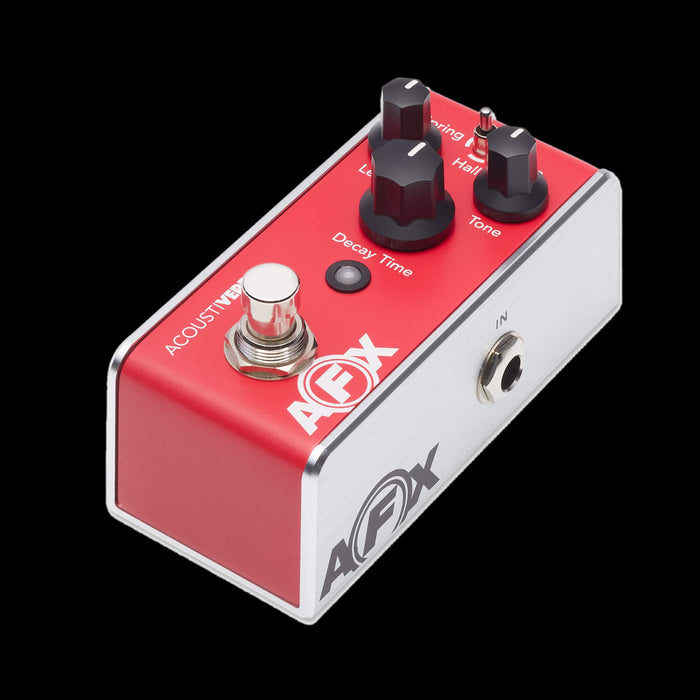

Fishman AFX AcoustiVerb Mini Reverb Pedal
HALL, PLATE & SPRING REVERBS FOR PERFECT TONE & AMBIANCE!
Three quality reverbs – Hall, Plate, Spring – are blended in parallel with your direct sound while preserving your acoustic tone.
The Reverb Time knob controls how long you hear the effect, and ranges from short to very large spaces. Tone knob affects only the reverb and not your direct sound. Similarly, the Level knob adds the effect into your signal chain without overwhelming the sound of your instrument.
AFX ACOUSTIVERB MINI ACOUSTIC GUITAR REVERB PEDAL
- Hall, Plate, and Spring Reverb Types
- True Bypass with Buffered Bypass Option
- Intuitive Decay Time, Tone, and Level Controls
- Innovative Dual Path Routing
- Super Compact Design Fits Almost Anywhere
9V External Power Required (sold separately)
SPECIFICATIONS
MODEL NUMBER: PRO-AFX-RV2

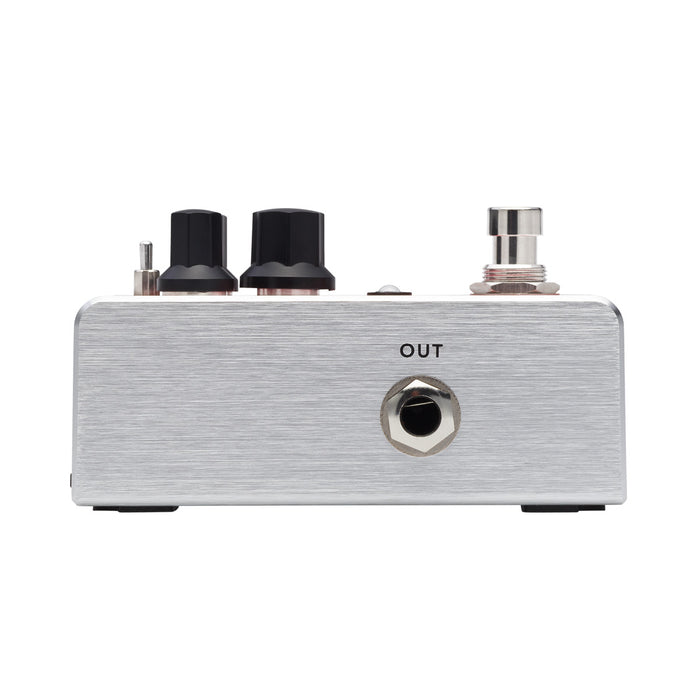

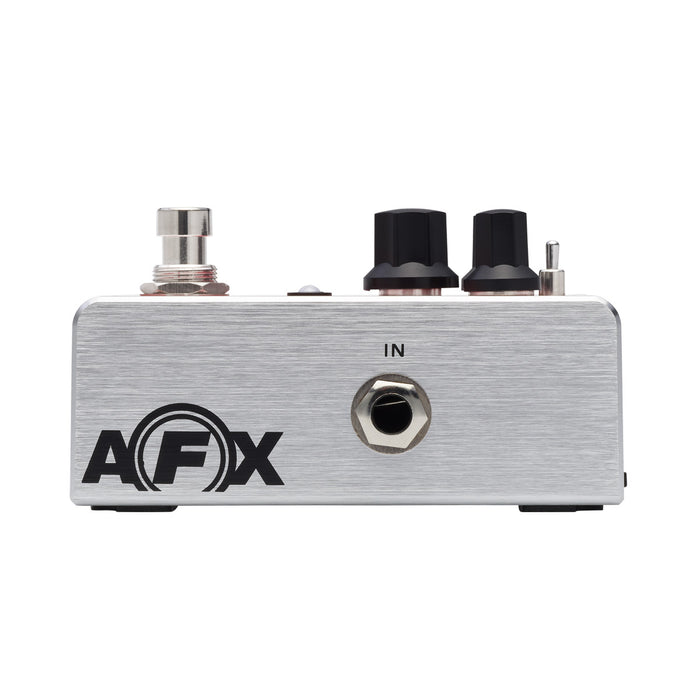

AUDIO I/O: 1/4" TRS input and output (TRS enables Dual Path Functionality)
DSP: 32-bit processing
BYPASS: True Bypass with Buffered Bypass Option
DIMENSIONS: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
MATERIAL: Durable aluminum enclosure
CURRENT DRAW: 53mA, typical

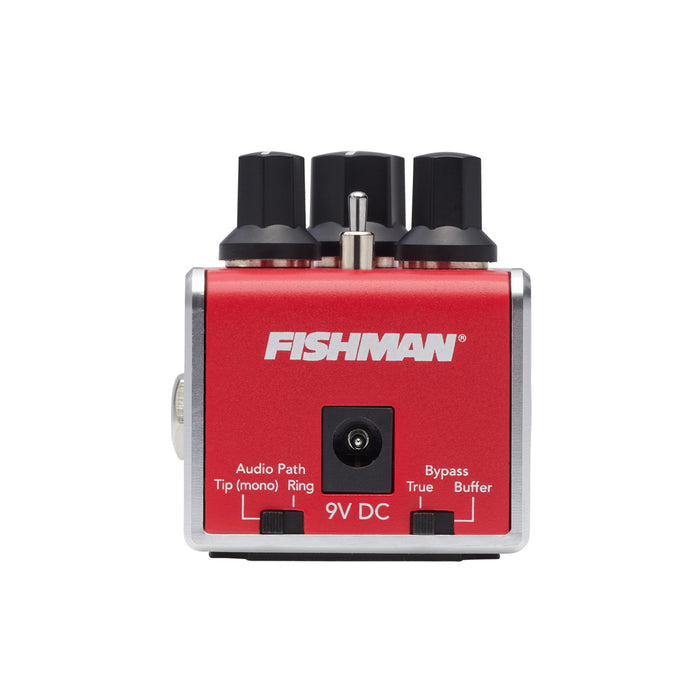

POWER: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
ANALOG SIGNAL PATH: Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB
DIGITAL SIGNAL PATH: A/D, D/A conversion: 24-bit | Signal processing: 32-bit
