GFI System Orca Delay Guitar Effect Pedal

Original price $ 199.00 - Original price $ 199.00
Original price
$ 199.00
$ 199.00 - $ 199.00
Current price $ 199.00
SKU 20GFI010

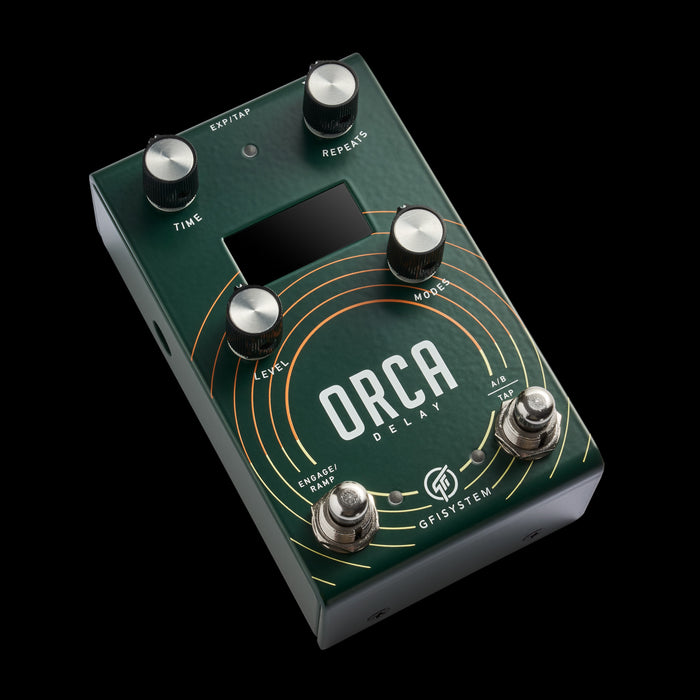

Orca packs four quintessential GFI System’s delay algorithms into a compact pedal that is straightforward and easy to use. Intuitive user interface coupled with an LCD screen makes it a breeze to navigate through Orca’s vast sonic pallete and features.

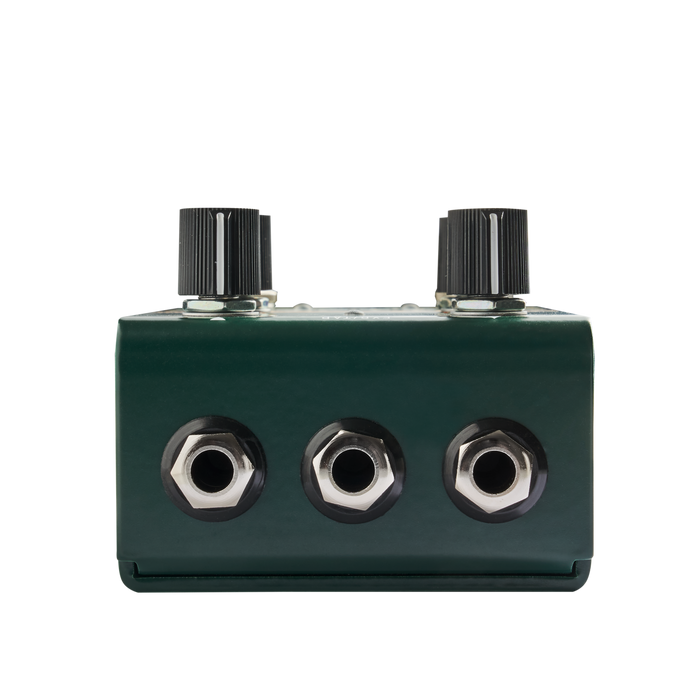

Input/Output

Orca supports both mono and stereo input/output. Mono connection is made using standard TS patch cables while stereo connections is made via TRS patch cables (a splitter-Y cable may be needed).



External control

A multi-purpose jack provides connection to an expression pedal or tap-tempo pedal.

Expression pedal input enables expressive control over the delays’ parameters, and the external tap-tempo can be used for remote tempo control.

Algorithms

  • Digital (max delay time : 1 second)

  • Tape (max delay time : 1 second)

  • Diffuse (max delay time : 1 second)

  • Ambiental (max delay time : 840 milisecond)

Specification

Key Features

  • Input impedance    : 1 MOhm.

  • Output impedance : 1K Ohm.

  • DAC / ADC resolution : 24 bits.

  • Current consumption : ~110 mA.

  • Weight : 0.6 Kg (1.6 lbs).

  • Dimension : 12 (L) x 7.2 (W) x 5.5 (H) cm

  • Power source : 9VDC (negative center).


  • 4 select delay algorithms.

  • 2 presets

  • 4 knobs with button

  • Intuitive interface with LCD screen.

  • Mono / Stereo input and output.

  • Expression pedal and tap-tempo input.

  • Momentary action supported.
