JHS Twin Twelve V2 Overdrive Guitar Effect Pedal
In 1963 Silvertone* introduced the 60 Watt Model 1484 guitar amplifier. Originally a student model amplifier, the 1484 has since become legendary, hard to find, and coveted by some of the biggest names in music. From the time of its debut in the Sears Catalog until its discontinuation only four years later in 1967, the model 1484 "Twin Twelve" amplifier is considered a Van Gogh of sorts as it developed a great appreciation and worth years after being discontinued. Artists such as Beck, Death Cab For Cutie, The White Stripes/Jack White, and more recently Vampire Weekend and Coldplay have brought this rare amp to the forefront of popular music. The JHS Pedals "Twin Twelve" channel drive is the first ever all analog stomp box that replicates the classic preamp/overdrive tones only found in the Silvertone 1484 "Twin Twelve" amplifier.
The heart of the JHS Pedals Twin Twelve is the discrete transistor stages that take the place of the original tubes found in the amplifier. Each transistor stage of each pedal is meticulously hand tuned and adjusted for the perfect voltage that achieves a striking similarity to the real valve sound of the original amplifier. To help achieve the weight and power of the original valve design the circuit is designed around a charge pump that internally converts your standard 9V DC Negative power up to a powerful 18 volts. This conversion gives you more punch, better dynamic range, and overall one of the best amp-like feels of any pedal we have ever offered.

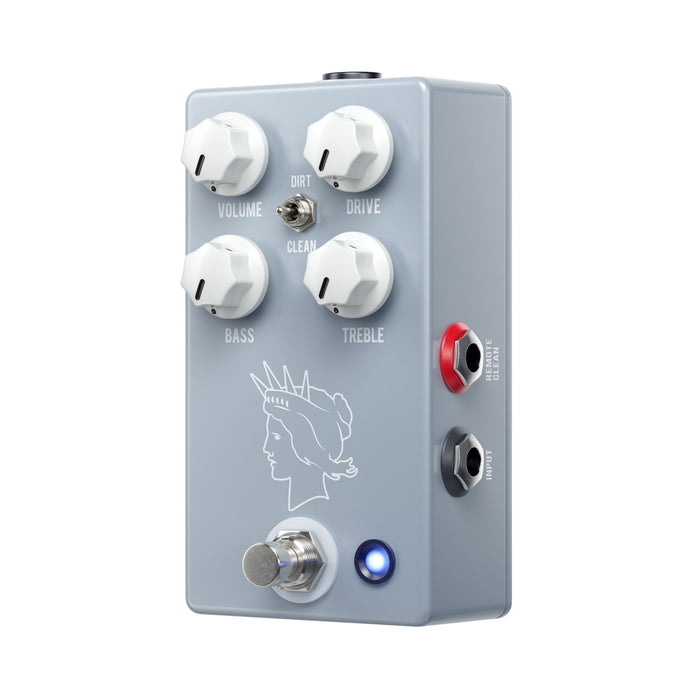

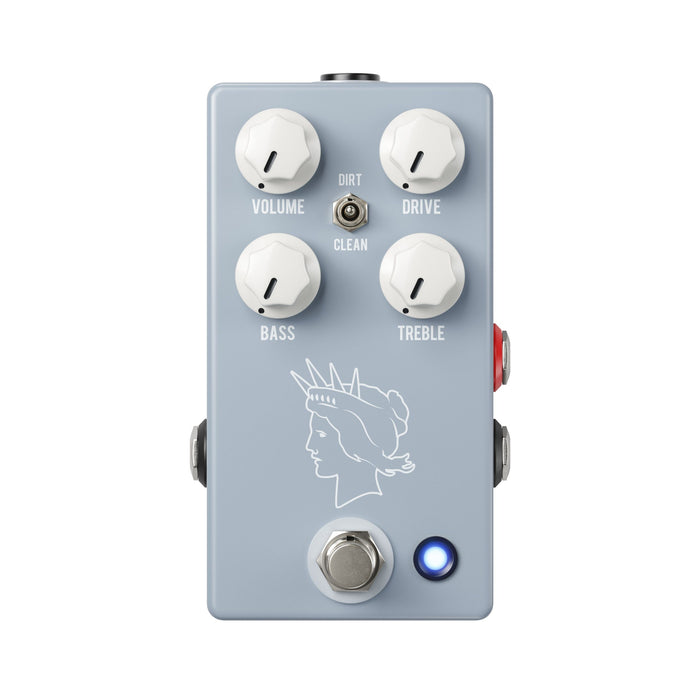

The JHS Pedals Twin Twelve V2 has five controls: Volume, Drive, Bass, Treble and Clean. The original amp only had Volume, Bass, and Treble. Let's start here and explain the additional Drive control that exists on our Twin Twelve pedal. The Volume control of the pedal acts as the master volume that the amplifier never had. By design, if the Volume control of the pedal is maxed out, the pedal is acting like a non-master-volume amplifier. The TT V2 has a more refined sweep and a better "sweet spot" than the V1 had when adjusting the Volume. The Drive knob of the pedal is essentially the Volume control of the amplifier. As you turn up the Drive knob of the pedal, you get more overdrive and tube-like saturation just like you would by cranking up the Volume knob on the amplifier. The biggest difference between the pedal and the original amplifier is that you can now crank the Drive knob of the pedal and turn the overall volume down with the pedal's Volume knob. The 1484 amplifier did not have this feature and made it at times unbearable to achieve the best cranked-up amp tones when in a small venue, small club, or bedroom situation. The Bass and Treble controls are almost exact replications of the 1484's Baxandall tone circuit with only minor improvements that make them work more effectively in a guitar pedal format. If you have ever played a real 1484 amp, you probably found yourself cranking up the amp's Bass control because the first 40% of the sweep was pretty useless and completely non-audible in change. On our pedal, we've adjusted the values within the Bass control network giving a more audible and useful control range. With the pedal's Bass and Treble set to noon you have the very classic and true 1484 amp tone with plenty of room to expand and tweak. The Bass and Treble controls of the pedal are active and allow you to cut or add frequencies. New to the version 2 is the Clean/Dirt toggle. It allows the TT to go from a clean preamp boost to the classic growling medium/heavy overdrive. The new Clean mode removes the Drive control from the circuit and turns the status LED to blue. In this mode, you will find clean and clear amp tones with a massive amount of headroom. The Clean mode shines as an all discreet boost, amp simulator, or as an always on preamp to fatten up your tone. When the toggle is flipped up, you are in the classic Twin Twelve overdrive mode and the LED turns red. The Clean/Dirt toggle is remotely switchable using the 1/4" jack on the top right side of the pedal. Set your normal TT tone and switch instantly to the Clean mode using the Red Remote for an on-the-fly secondary tone without using hardly any extra space on your board at all.
The Twin Twelve V2 can be used as an "always-on" clean preamp, an enhancer for your current rig, or as a powerful solo booster. The Twin Twelve excels at heavy amp-like overdrive tones, treble boosting, edge of fuzz overdrive, and more. We are convinced that this is one of our greatest offerings ever, and we think you will feel the same.
Enjoy classic Silvertone 1484 tones without having to jump in a Delorean and turn back time.
**The word/name Silvertone is a registered trademark. The JHS Pedals Twin Twelve pedal is in no way affiliated with Silvertone. JHS Pedals has applied and filed for the trademark of the word/name Twin Twelve and is awaiting official registration from the US Patent & Trademark Office.
This pedal requires standard 9V DC Negative power, consumes less than 100mA, and measures 2.2"x4.3"x1.5"
V1 = 4 Controls, white LED
V2 = added Dirt/Clean toggle, added Red Remote system, bi-color LED
