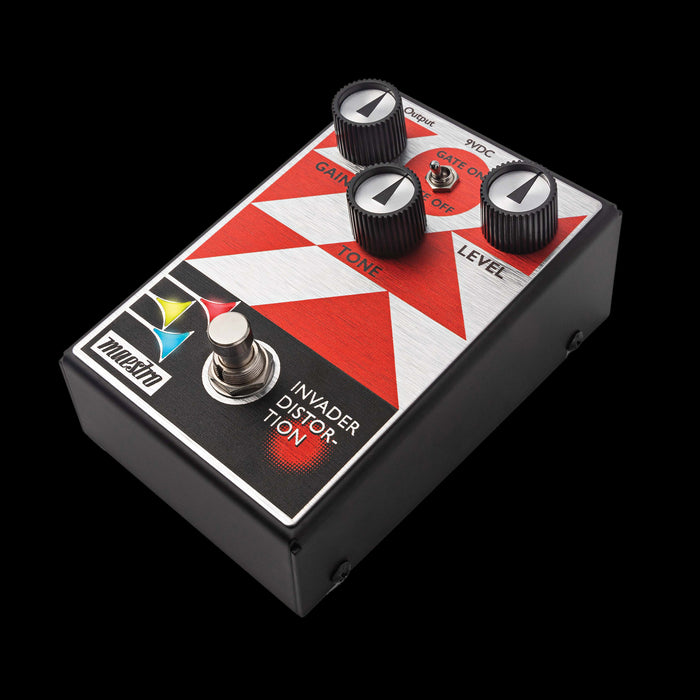

Maestro Invader Distortion Guitar Effect Pedal
The Invader is a high-gain, all-analog modern distortion pedal with an aggressive, dominant sonic character and rich harmonics, generating
a wide range of distorted sounds. The 3-knob control layout offers intuitive control over Gain (distortion amount), Tone, and output Level, with
more than enough volume on tap to easily exceed unity gain when desired. Players can also engage a built-in noise gate with the top panel
toggle switch. An internal trim pot mounted on the circuit board inside the pedal allows adjustments to the level of the noise gate’s Threshold.
The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.
Controls: Gain, Tone, Level; internal Noise Gate Threshold trim pot
Internal Trim Pot: An internal trim pot on the circuit board allows the user to
adjust the level of the Noise Gate’s Threshold. Using a small screwdriver, turn this
control up for a higher Threshold level, and down for a lower Threshold level.
Switches: True Bypass footswitch, Gate On/Gate Off toggle switch
LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate
when the pedal is active
Signal Processing: All-Analog
Power Requirements: 9V battery or regulated 9VDC power supply (5.5 X 2.1 mm
plug, wired center-negative)
Current Draw: 56.7 mA
Power On Switch: Incorporated into the input jack. Unplug the input when
not in use to prevent battery drain. Remove the battery when the pedal is
going to be stored for long periods to prevent leakage and damage.
Input Impedance: 100 kOhms
Output Impedance: 100 Ohms
Switching: True Bypass
Dimensions (D x W x H): 5.04” x 3.45” x 2.50” (128.0 mm x 87.6 mm x 63.5 mm)
Weight: Net 1.24 lb. (562.5 gm.), Gross 1.62 lb. (734.8 gm.
