Power-All C-11/R Cable-11 Right-Angle Daisy Chain

Original price $ 15.00 - Original price $ 15.00
Original price
$ 15.00
$ 15.00 - $ 15.00
Current price $ 15.00
SKU 29POW006

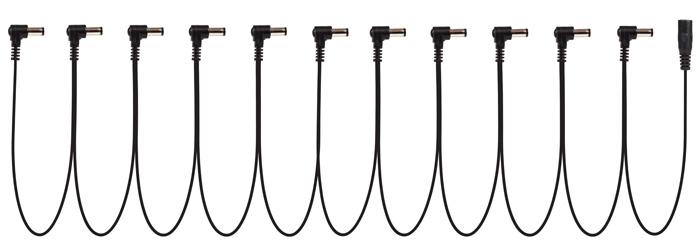

The Power-All Cable-11/R Daisy Chain allows the user to connect up to eleven pedals in series to a single power source.*

The C-11/R offers the following features:

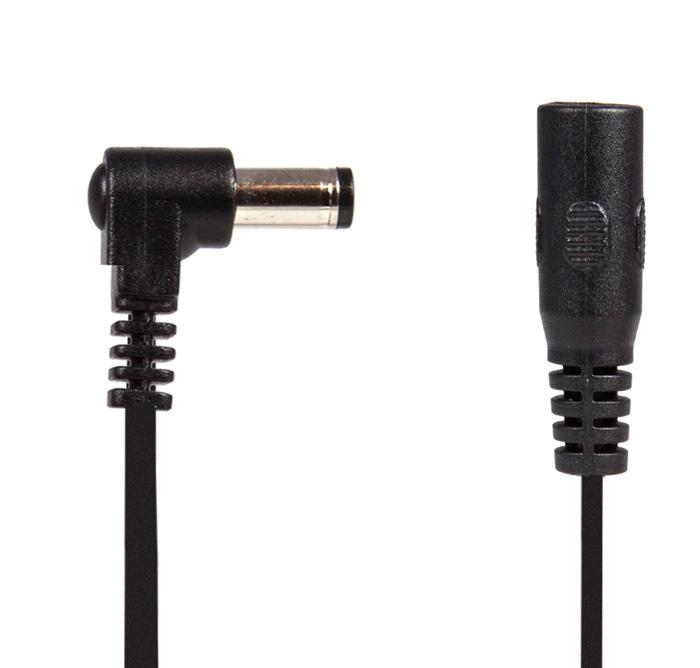

  • 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BL Cable may be required to connect C-11/R to brick-style power supplies)
  • 11 x right-angle Male Barrel plugs to connect to pedals or other cables
  • Spring-loaded male plugs to reduce chance of disconnection
  • 26-gauge Cable with oil-resistant vinyl sheath
  • 10.5” (approx. 264 mm) Cable length between plugs
  • NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient



SPECIFICATIONS:

  • Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
  • Male Barrel Plugs (11): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
  • Cable: 26-gauge, OFC with oil-resistant vinyl sheath
  • 10.5” (approx. 264 mm) Cable length between plugs

TIPS:

  • Output polarity of C-11/R’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if the Power Supply is tip-negative, then all C-11/R outputs will be tip-negative)
  • Connect C-M/M Cable to C-11/R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
  • Connect additional Daisy-Chains to C-11/R’s last male Barrel Plug to power additional pedals*
  • Connect Cable-Red to female jack of C-11/R to reverse the output polarity of all male plugs
  • Connect Cable-Red to male plug on C-11/R to reverse the output polarity of that plug
  • Use C-Cap to cover unused male Barrel Plugs & prevent short-circuits
