Pre Owned Mode Machines ADX1 Analog Drum Machine With Adapter

SKU 81MOD000
Sold out
Original price $ 700.00 - Original price $ 700.00
Original price
$ 700.00
$ 700.00 - $ 700.00
Current price $ 700.00

Excellent condition, vetted to perfect working condition, and ready to go!

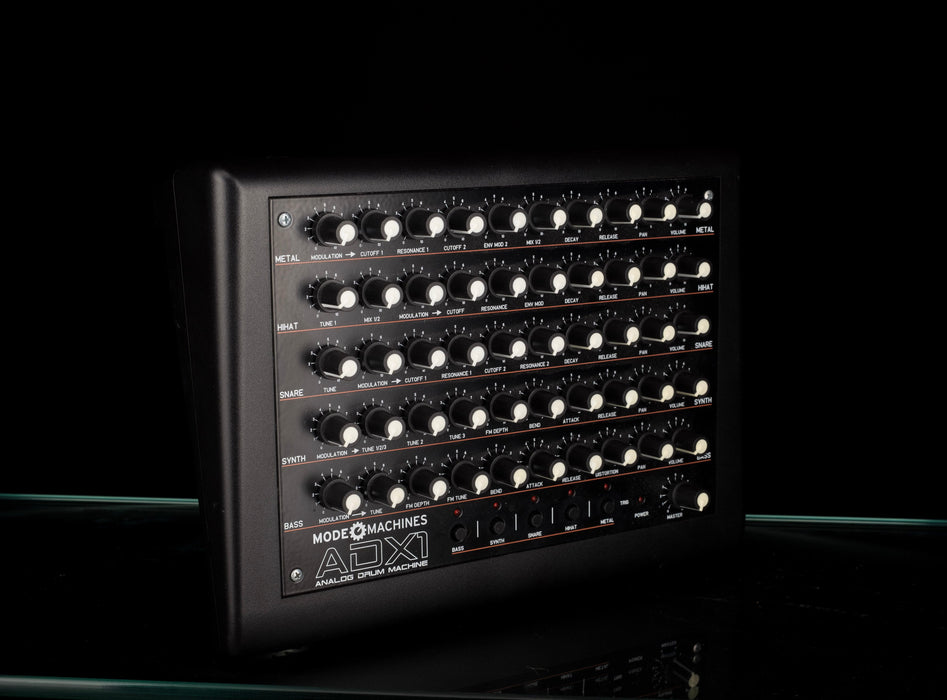

Mode Machines brought again the ADX 1, a powerful 5 channel Analogue Drum Expander with individual outputs, MIDI control and infinite amount of sound tones thanks to its generous amount of knobs to control its parameters.

The 5 Channels provide different sound palettes.

Metal: Metal is used to create cymbal sounds and consists of two different metallic-sounding Generators. Two filters, Envelope/modulation options, Decay and Release.

HiHat: HiHat consists of one metallic-sounding noise generator and one “clean” signal, Pitch control, mix, modulation, filter, Envelope modulation, Decay and Release.

Snare: The sound of Snare is created by one metallic-sounding noise generator through two band pass filters connected in parallel, Decay and Release.

Synth: Is used to create sounds like bells or synthesizers and consists of 3 sinus Oscillators. FM and Bend for a wide palette of sounds, Attack and Release.

Bass: Consists of one sinus oscillator, with pitch control. Additional Overtones can be created by frequency modulation. Attack simulates the “Pluck” of a bass string, Release to control the length and Distortion available for dirtier sounds.

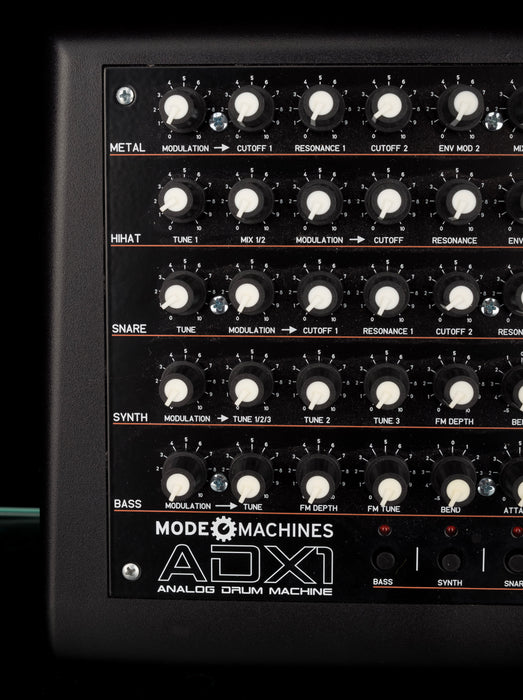

51 knobs, no menus or button combinations. Every parameter instantly available.
8 controls per channel allowing you to create a wide range of sounds.
The individual channels can be auditioned with the Trigger buttons or via MIDI.
Each channel has a Panorama control and a Volume control.
Individual outputs at the rear of the device for external mixing.
When any of these outputs are connected to another mixing device, the signal(s) is not separated from the master output.
Two master outputs (left/right),

MIDI ports (IN/THRU),
ON/OFF switch,
Power Jack AC 12 Volt
MIDI Channel Switch
DIMENSIONS: 200.7 x 279.4 x 76.2 mm
