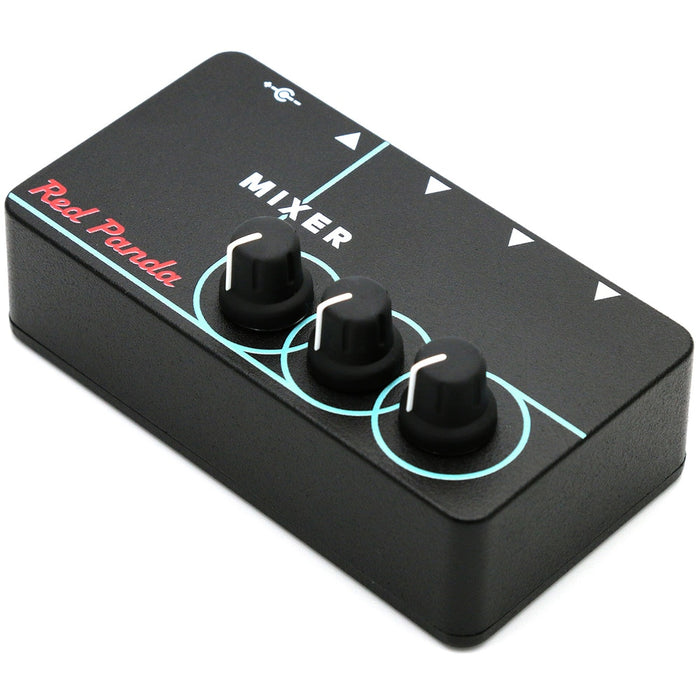

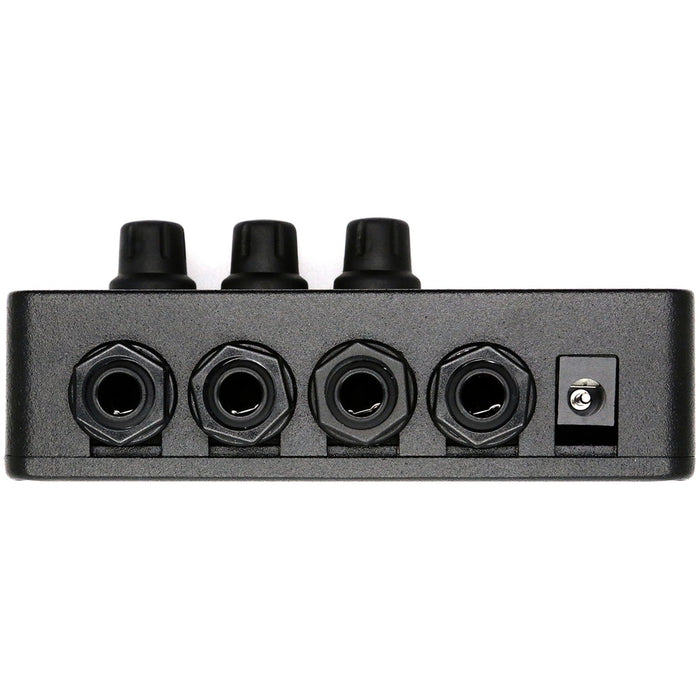

Red Panda Bit Mixer Guitar Effect Mixer

$ 149.00

Sold Out

The Bit Mixer is a small, high-quality mixer designed for pedalboards. It features ultra-low distortion, low noise op amps. High-impedance inputs are designed for guitar, but work with line level signals as well. Each input has a volume knob that goes from off to unity gain.  Only 4.4” x 2.6”, and works with standard pedal power supplies from 9-18 V.

The Bit Mixer is always on when power is connected. An internal LED is visible below the power jack.

Usage

    • Connect multiple instruments to one amp
    • Combine parallel effects chains
    • Clean blend or analog dry path
  • Size:
    4.4" x 2.6" x 1.5"
    Input impedance:
    1 MΩ
    Output impedance:
    < 1 kΩ
    Frequency response (± 3 dB):
    20 Hz - 40 kHz
    Signal-to-noise ratio:
    90 dB
    Power:
    9-18 VDC, center negative
    Current:
    60 mA
