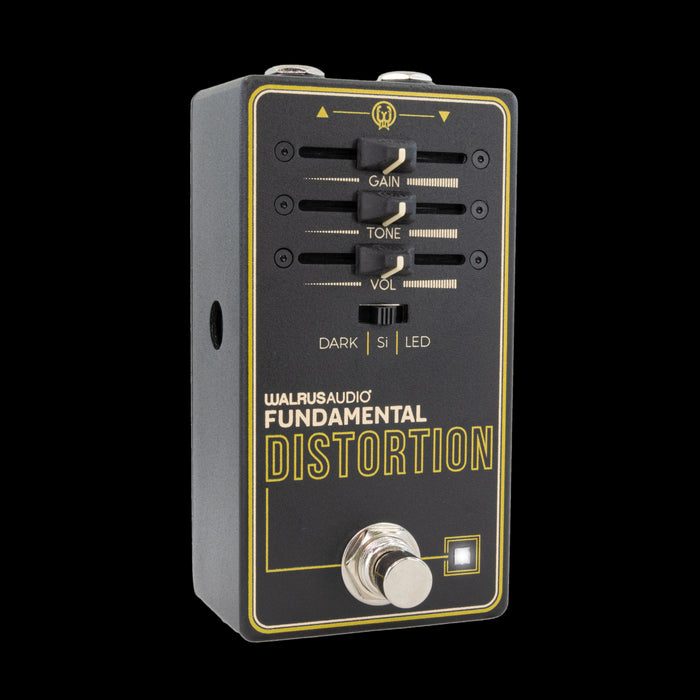

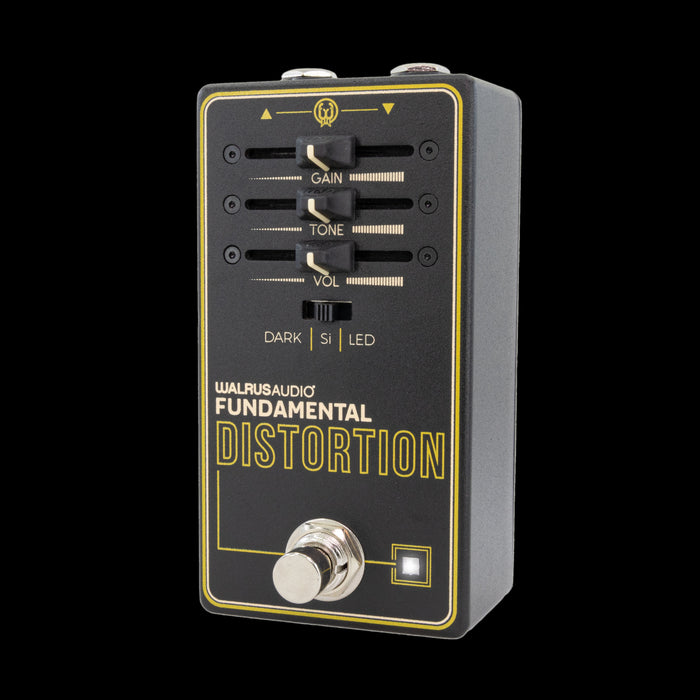

Walrus Audio Fundamental Series Distortion Pedal
For the Fundamental Series, Walrus Audio challenged themselves to design a set of pedals with the tonal integrity that’s required to live on a professional’s pedalboard, but with simplified controls friendly enough for even the newest effect pedal users. Each Fundamental pedal has 3 sliders for tweaking the sound and a three-way switch for changing pedal modes. The result is a line of 8 pedals that will keep you covered from your first band practice all the way to a sold-out arena. Designed and assembled at Walrus Audio headquarters in OKC, OK.
The Fundamental Distortion is a 3-mode distortion. It covers a wide range of sounds from dark and doom through sharp cutting leads.
Gain – The Gain slider sets the amount of gain applied to your guitar signal passing through the fuzz circuit.
Tone – The Tone slider controls the frequency response of the signal after distortion. Below center boosts highs and above center cuts highs.
Volume – The Volume slider sets the overall output volume of the pedal.
Slide Switch – The slide switch allows you to change between 3 distinct flavors of the pedal. Each position has different clipping modes or tone profiles.
Dark - Asymmetric silicon clipping with added high-frequency cut. Think dark and dynamic.
Si - Classic silicon hard clipping diodes. Things get compressed and crunchy.
LED - LED hard clipping diodes. A dynamic and crunchy sound.
Note: The LED clipping mode will be louder due to the nature of the LEDs, so use your volume slider to compensate!
Bypass Switch – Turns the effect on and off.
Bypass LED - Illuminated when the effect is engaged.
Input Jack - 1/4 inch cable from the instrument.
Output Jack - 1/4 inch cable to amplifier.
9v Jack – 9-volt DC, Center Negative, 100mA min.
